Program Xhorse ELV Emulator with VVDI Key Tool Plus

How to program Xhorse ELV emulator with vvdi key tool plus tablet? Follow the instructions below step-by-step.

Main Procedure:
1.Calculate Password
2. Load EIS data and paste password
3. Clear TP and Personalization, Write ESL data

When operating on the car, you need to clip the K-line of the EIS. The EIS has a plug connection with four wires on it.
Remove the thinnest wire harness and clip with Blue OBD wire clip before operation. Don’t need to clip the kline of EIS if do it on bench.

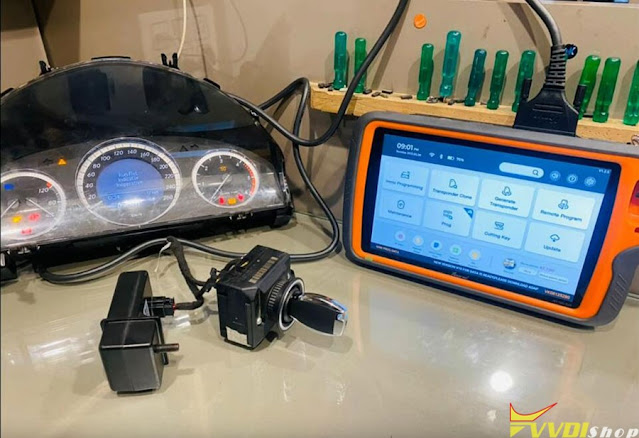

Let’s move to details (bench mode).

1. Calculate password

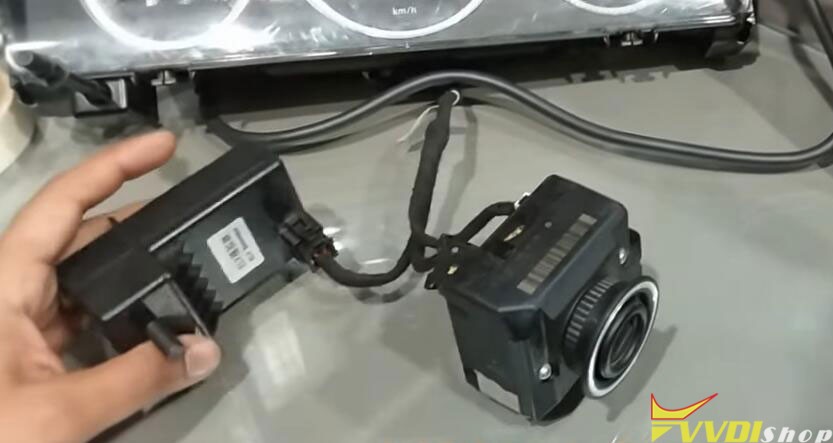

Install Xhorse ELV emulator or Mini ELV emulator

Turn on ignition switch

Program Xhorse ELV Emulator with VVDI Key Tool Plus 1

Program Xhorse ELV Emulator with VVDI Key Tool Plus 2

Program Xhorse ELV Emulator with VVDI Key Tool Plus 3

Go to Immo Programming-> Benz-> Select from system-> Password calculation-> Read BE key password

Insert VVDI BE key into induction coil

Program Xhorse ELV Emulator with VVDI Key Tool Plus 4

Program Xhorse ELV Emulator with VVDI Key Tool Plus 5

Program Xhorse ELV Emulator with VVDI Key Tool Plus 6

Program Xhorse ELV Emulator with VVDI Key Tool Plus 7

Program Xhorse ELV Emulator with VVDI Key Tool Plus 8

Read BE key password successfully, take a screenshot of the password

Go to EIS Tools, Start programming
Select Auto Detect (CAN)
Xhorse Key tool plus detects as W172 W204 W207 W212 with ELV

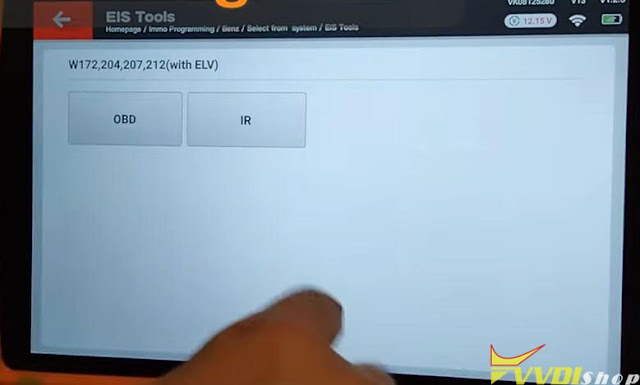

Select Read the EIS data via OBD
Save the EIS password

Program Xhorse ELV Emulator with VVDI Key Tool Plus 9

Program Xhorse ELV Emulator with VVDI Key Tool Plus 10

Program Xhorse ELV Emulator with VVDI Key Tool Plus 11

Program Xhorse ELV Emulator with VVDI Key Tool Plus 12

Program Xhorse ELV Emulator with VVDI Key Tool Plus 13

Program Xhorse ELV Emulator with VVDI Key Tool Plus 14

Program Xhorse ELV Emulator with VVDI Key Tool Plus 15

3.
Then Select ESL Tools function, start programming
Select OBD W204 W207 W212

Program Xhorse ELV Emulator with VVDI Key Tool Plus 16

Program Xhorse ELV Emulator with VVDI Key Tool Plus 17

The key tool plus adds a Process Wizard Mode menu, you can either use this menu to finish programming ELV emulator or manual write ESL data and follow prompts until finish

Program Xhorse ELV Emulator with VVDI Key Tool Plus 18

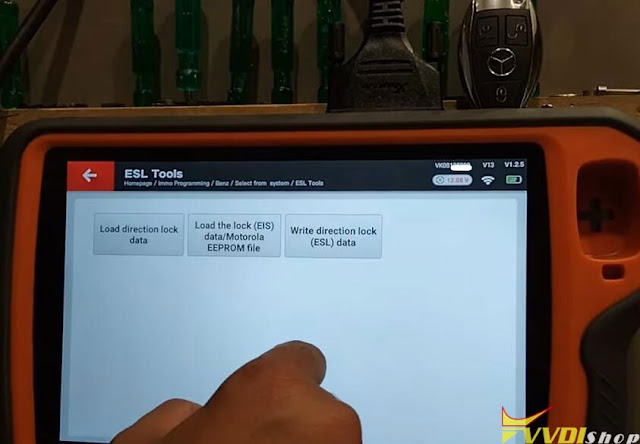

Manual way:
Select Write ESL data
Load the EIS data
Then Write ESL data

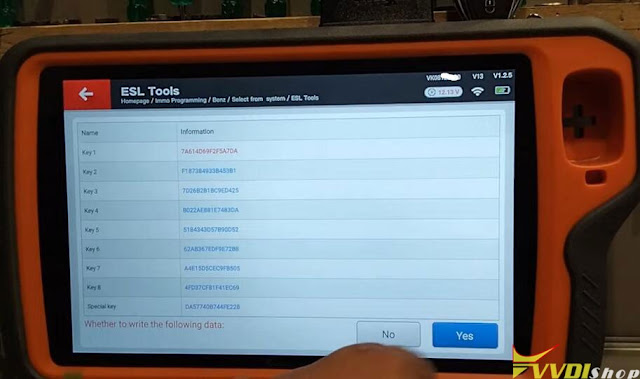

Automatically fill in the SSID and key password
Write data success

Program Xhorse ELV Emulator with VVDI Key Tool Plus 19

Program Xhorse ELV Emulator with VVDI Key Tool Plus 20

Program Xhorse ELV Emulator with VVDI Key Tool Plus 21

Program Xhorse ELV Emulator with VVDI Key Tool Plus 22

Program Xhorse ELV Emulator with VVDI Key Tool Plus 23

Program Xhorse ELV Emulator with VVDI Key Tool Plus 25

Program Xhorse ELV Emulator with VVDI Key Tool Plus 26

Program Xhorse ELV Emulator with VVDI Key Tool Plus 27

Program ELV emulator successfully. Turn on ignition with the BE key.

If done on bench, put everything back to vehicle.
