Read MQB48 RH850 RF701401 Dash by VVDI Key Tool Plus

Another Xhorse RH850 adapter tutorial: how to read VAG MQB NEC35XX RH850 DF701401 dashboard with xhorse vvdi key tool plus and RH850 cable.

Read MQB48 RH850 RF701401 Dash by VVDI Key Tool Plus 1

Procedure:

Select Immo Programming>>VW>>Select by Type>>MQB Immo System>>Dashboard-MQB48 (VDO/JCI-NEC35XX Locked)-> Read NEC35XX Chip>>Soldering>>R7F701401

Read MQB48 RH850 RF701401 Dash by VVDI Key Tool Plus 2

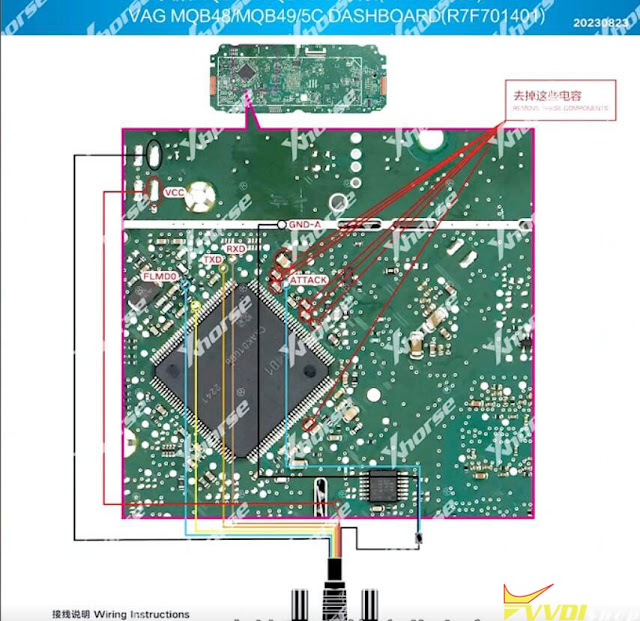

Check wiring diagram

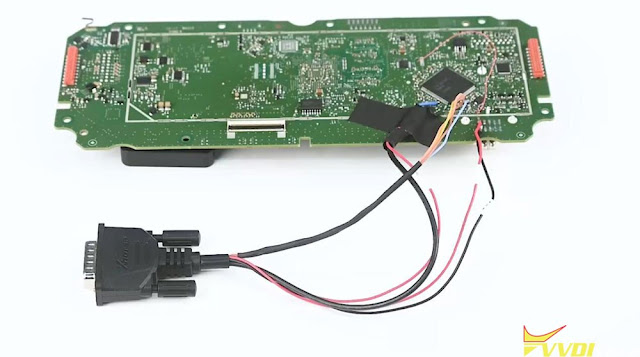

Remove components and solder rh850 cable with cluster

Connect rh850 cable with key tool plus

Read MQB48 RH850 RF701401 Dash by VVDI Key Tool Plus 4

Read MQB48 RH850 RF701401 Dash by VVDI Key Tool Plus 5

Read MQB48 RH850 RF701401 Dash by VVDI Key Tool Plus 6

Read MQB48 RH850 RF701401 Dash by VVDI Key Tool Plus 7

Read MQB48 RH850 RF701401 Dash by VVDI Key Tool Plus 8

Read MQB48 RH850 RF701401 Dash by VVDI Key Tool Plus 9

Read and save immo data

Read MQB48 RH850 RF701401 Dash by VVDI Key Tool Plus 10

Select Get Immo data

Upload rh850 DF702401 data save above to calculate immo data

Then save immo data

Now you can generate dealer key or learn key with the immo data

Read MQB48 RH850 RF701401 Dash by VVDI Key Tool Plus 12
