Read MQB48 RH850 D70F3426 Dash by VVDI Key Tool Plus

Xhorse tutorial: how to read VAG MQB48 NEC35XX locked RH850 D70F3426 processor dashboard with Xhorse vvdi key tool plus and RH850 cable.

Xhorse XDNPRBGL MQB-RH850/V850 Adapter is designed to read VW MQB48 dashboard data without cutting/ lifting any pins.

Support List:

MQB-RH850 (R7F)

MQB 34XX

IMMO4 JCI 34XX

Read MQB48 RH850 D70F3426 Dash by VVDI Key Tool Plus 1

Here take an example of RH850 D70F3426. D70F3426 cluster is more complex than the regular RH850 cluster.

You will need key tool plus, RH850 adapter and eeprom adapter

Procedure:
1.Read dashboard data

The function requires network connection.
Go to Immo Programming>>VW>>Select by Type>>MQB Immo System>>Dashboard-MQB48 (VDO/JCI-NEC35XX Locked)
Then select Read Immo data>>Read NEC35XX Chip>>Soldering>>R7F703426

Read MQB48 RH850 D70F3426 Dash by VVDI Key Tool Plus 3

Check wiring diagram

Read MQB48 RH850 D70F3426 Dash by VVDI Key Tool Plus 4

Follow wiring diagram to remove 4 capacitors

Read MQB48 RH850 D70F3426 Dash by VVDI Key Tool Plus 5

solder RH850 adapter with cluster, then connect RH850 cable with key tool plus

Read MQB48 RH850 D70F3426 Dash by VVDI Key Tool Plus 6

Read MQB48 RH850 D70F3426 Dash by VVDI Key Tool Plus 7

Read MQB48 RH850 D70F3426 Dash by VVDI Key Tool Plus 8

Read and save IMMO Data

Read MQB48 RH850 D70F3426 Dash by VVDI Key Tool Plus 9

Step 2: Read EEPROM Data
Remove RH850 cable from cluster
Restore capacitors

Read MQB48 RH850 D70F3426 Dash by VVDI Key Tool Plus 10

Remove 95128wt eeprom chip from cluster

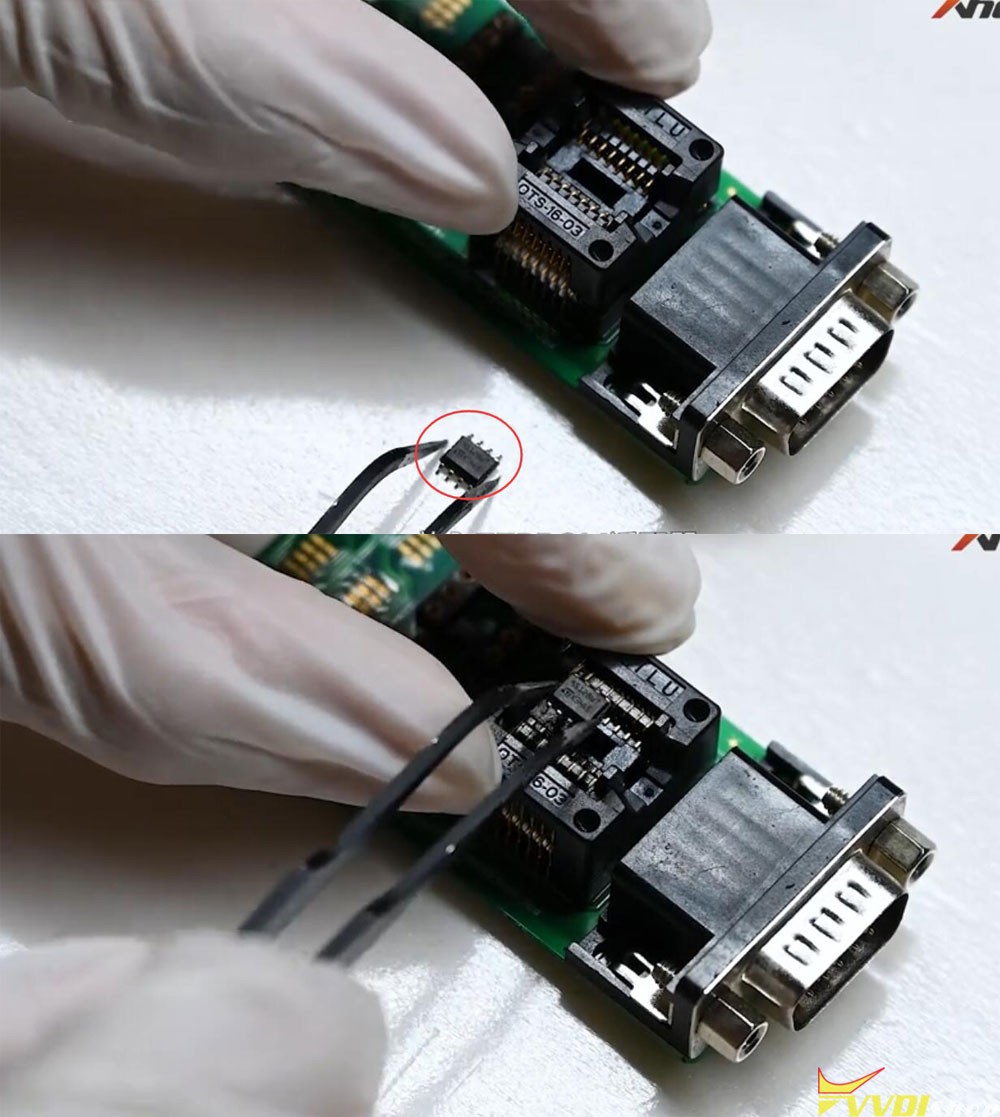

Solder eeprom chip to eeprom adapter

Read MQB48 RH850 D70F3426 Dash by VVDI Key Tool Plus 11

Read MQB48 RH850 D70F3426 Dash by VVDI Key Tool Plus 12

connect eeprom adapter with vvdi key tool plus via DB15 cable

Read MQB48 RH850 D70F3426 Dash by VVDI Key Tool Plus 13

Read and save eeprom 95128

Read MQB48 RH850 D70F3426 Dash by VVDI Key Tool Plus 14

Step 3: Get immo data

Select Get Immo data

Upload 95128 eeprom to calculate immo data online

Then save new immo data

Now you can generate dealer key and learn key with the calculated immo data.

Done.
