VVDI Key Tool Plus Read MQB D70F3537 with Solder Free Adapter

 Xhorse MQB48 Solder Free Adapters are specially designed to provide an easier and safer solution to save automotive locksmiths from the intricate and annoying soldering, pin lifting and wire cutting work. Here we’ll walk you through how to read MQB D70F3537 data with the new adapter and Xhorse VVDI Key Tool Plus.



If the MQB48 solder-free adapter is not used, locksmiths may suffer from the complex operation and high risk of damage when reading VW MQB instrument immo data particularly BGA D70F3532/35/36/37. Possible problems are:

  • Crystal oscillator frequency configuration failed.
  • Difficult operations requiring experience and skills.
  • Easy to cause damage and high risk of loss.
  • May require the use of professional tool.



Procedure

Immo programming >> VW >> Select by type >> MQB instrument immo system >> Instrument-MQB48(VDO/JCI-NEC35xx lock) >> Start programming

Please read the disclaimer carefully, tap “OK”.

Please make sure Network connection is normal, click “OK”.

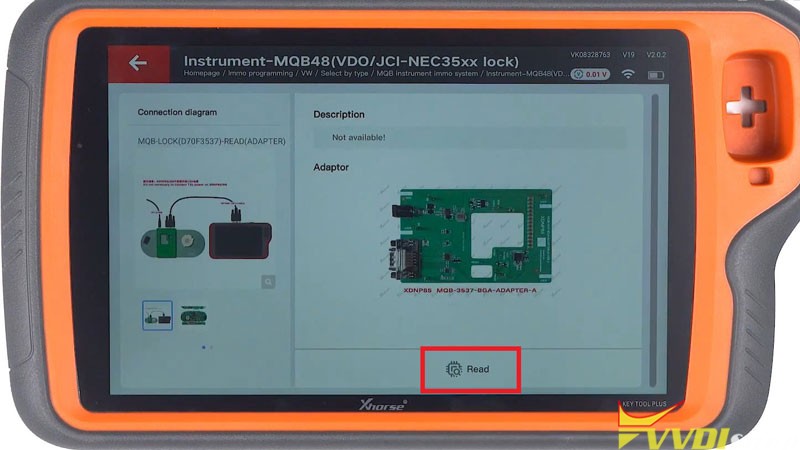

Programmer reads files >> Read NEC35xx chip >> Adapter method >> D70F3537

Here we can check the connection diagram.

VVDI Key Tool Plus Read MQB D70F3537 with Solder Free Adapter 1

VVDI Key Tool Plus Read MQB D70F3537 with Solder Free Adapter 2

VVDI Key Tool Plus Read MQB D70F3537 with Solder Free Adapter 3

VVDI Key Tool Plus Read MQB D70F3537 with Solder Free Adapter 4

VVDI Key Tool Plus Read MQB D70F3537 with Solder Free Adapter 5



Connection

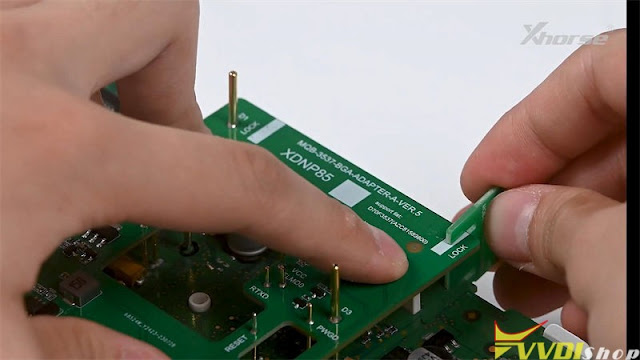

Step1. Located the positioning points and connect the adapter to the board with reference to the points, connect and apply the clips.



Note: make sure the pins aim right at and keep good contact with the points. Otherwise, the following errors may occur:

  • Crystal oscillator frequency configuration failed. There’s a problem with the contacts, please reinstall the adapter.
  • Chip cracking failed.
  • The contacts are loose.
  • Continue reading repeatedly.



Step2. Connect XDNPM1GL MQB48-BGA Adapter to Key Tool Plus with DB15 cable.

Step3. Power it up using a power supply.

VVDI Key Tool Plus Read MQB D70F3537 with Solder Free Adapter 6

VVDI Key Tool Plus Read MQB D70F3537 with Solder Free Adapter 7

VVDI Key Tool Plus Read MQB D70F3537 with Solder Free Adapter 8

VVDI Key Tool Plus Read MQB D70F3537 with Solder Free Adapter 9

VVDI Key Tool Plus Read MQB D70F3537 with Solder Free Adapter 10

VVDI Key Tool Plus Read MQB D70F3537 with Solder Free Adapter 11

Read MQB48 IMMO

Read >> Continue

Reading success.

Save data file.

The immo data can be used to generate dealer key and for key learning.

VVDI Key Tool Plus Read MQB D70F3537 with Solder Free Adapter 12

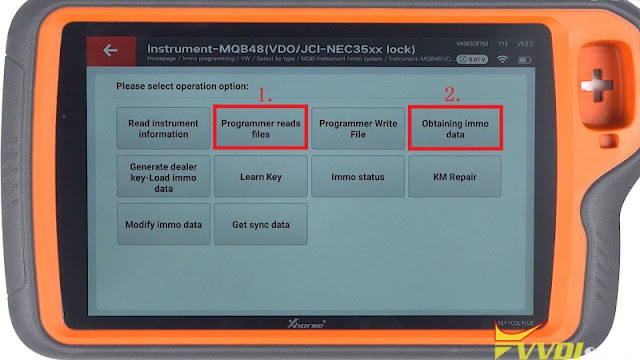

Obtaining immo data >> Load and upload NEX35xx chip file read by Key Tool Plus>> Select the saved data



Is this instrument type is requires external EEPROM 95320 to be loaded: after 17 years of PASSAT(56D902861A/ 56D920871A/ 56D920871/ 56D920861), after 17 years of Beetle

Click “Yes” to start loading external EEPROM data files.

Click “No” to start uploading data to the server.



This instrument requires no reading and loading EEPROM 95320, so here we tap “No” to start the calculation.

This will take about 5-10 minutes to complete the calculation.

VVDI Key Tool Plus Read MQB D70F3537 with Solder Free Adapter 13

VVDI Key Tool Plus Read MQB D70F3537 with Solder Free Adapter 14

VVDI Key Tool Plus Read MQB D70F3537 with Solder Free Adapter 15

VVDI Key Tool Plus Read MQB D70F3537 with Solder Free Adapter 16

VVDI Key Tool Plus Read MQB D70F3537 with Solder Free Adapter 17
