VVDI Key Tool Plus Program 2015 Hyundai Sonata Key Success

Xhorse VVDI Key Tool Plus can program a new key for 2015 Hyundai Sonata via OBD successfully. Following I will use an Xhorse Wired Remote as a demonstration.

Program Remote

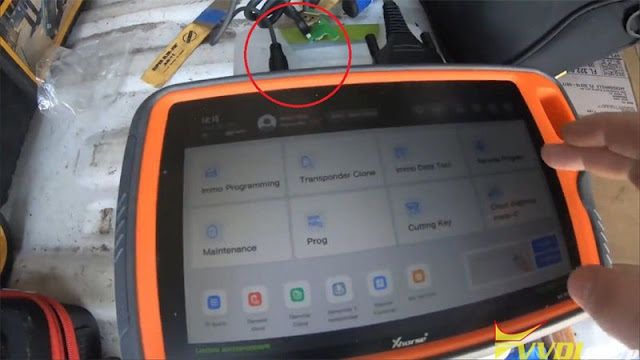

Pop the back of key, take circuit board out to plug into VVDI Key Tool Plus.

Remote Program >> Asia >> Hyundai >> All remotes >> Sonata 4f16 >> Generate

Writing data…

Generate success.

VVDI Key Tool Plus Program 2015 Hyundai Sonata Key 1

VVDI Key Tool Plus Program 2015 Hyundai Sonata Key 2

VVDI Key Tool Plus Program 2015 Hyundai Sonata Key 3

Program IMMO

Put a battery into the key, and go to car for next step programming.

Connect Xhorse Key Tool Plus with car OBD,

Immo programming >> Asia >> Hyundai >> Select by model >> US market >> Sonata(LFA) >> 2015-2018 >> Remote key adaptation

Put the key in, and turn ignition on.

Turn ignition off.

Press LOCK & UNLOCK together to match remote.

Successful.

Test the key, it does work.

This is how to use a wired remote & VVDI Key Tool Plus to program 2015 Hyundai Sonata successfully.
