How to Clone Audi A6 2007 ESL with Xhorse VVDI Key Tool Plus?

Xhorse VVDI Key Tool Plus read original Audi A6 2007 ESL eeprom 1L59W and write to new ESL to clone successfully.

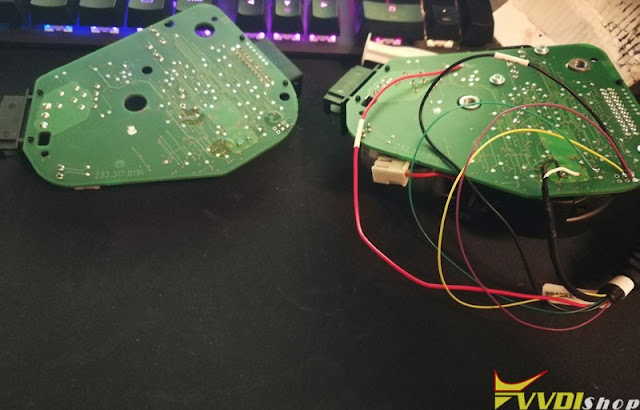

vvdi key tool plus Clone Audi A6 2007 ESL 1

Left: Original ESL Right: New ESL

vvdi key tool plus Clone Audi A6 2007 ESL 2

vvdi key tool plus Clone Audi A6 2007 ESL 3

Audi A6L/Q7 J518( pre-2010) wiring diagram

vvdi key tool plus Clone Audi A6 2007 ESL 4

Property:(1L59W/3L40K)

EEPROM:2KB

P-FLASH:128KB

Wiring Instructions:

Connector:MC9S12 Reflash Cable (if connect with vvdi key tool plus pad, use XDNP36 9S12xE adapter instead)

Group 1:

GND

VCC

Group 2:

Yellow Line

Purple Line

Green Line

Group 3:

GND-C

CLK

NOTE:Please don’t lengthen the CLK line and GND-C line.

vvdi key tool plus Clone Audi A6 2007 ESL 5

vvdi key tool plus Clone Audi A6 2007 ESL 6

vvdi key tool plus Clone Audi A6 2007 ESL 7

Key Tool Plus Path: Prog-IMMO-Audi-AUDI J518(-2010) -1L59W

vvdi key tool plus Clone Audi A6 2007 ESL 8

FYI:

Audi A6L/Q7 J518 (After 2010) wiring diagram

Property:(0L01Y)

EEPROM:4KB

P-FLASH:256KB

Wiring Instructions:

Connector:MC9S12 Reflash Cable

Group 1:

GND

VCC

Group 2:

Purple Line

Yellow Line

Green Line

Group 3:

GND-C

CLK

NOTE: Please don’t lengthen the CLK line and GND-C line.
