Xhorse VVDI Key Tool Plus Clone VW DQ200 Gearbox

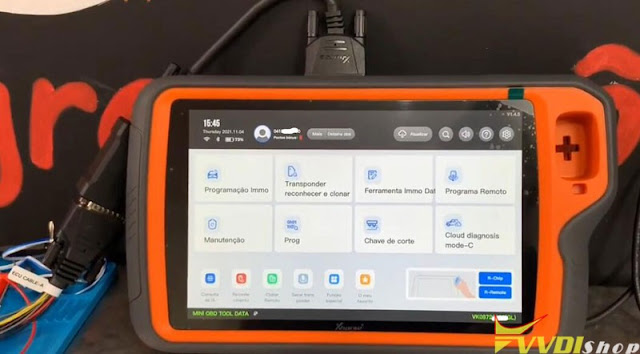

Xhorse vvdi key tool plus tablet is capable of reading and writing Volkwagen gearbox DQ200, DL382, DL501, DQ250 and VL381. Here is a demo guide on VW Golf DQ200 gearbox cloning.

Xhorse VVDI Key Tool Plus Clone VW DQ200 Gearbox 2

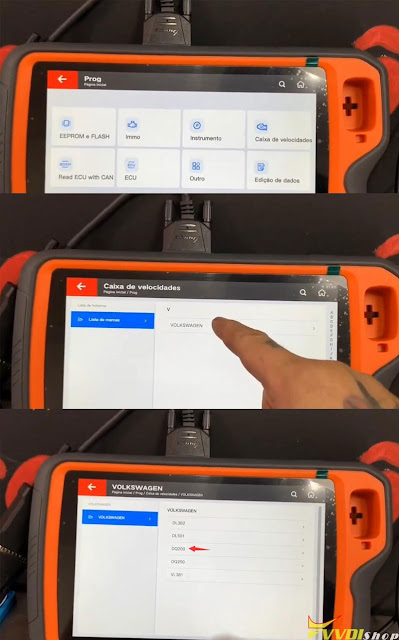

You go to Prog function- Gearbox- Volkwagen- Volkwagen-DQ200

Xhorse VVDI Key Tool Plus Clone VW DQ200 Gearbox 3

Xhorse VVDI Key Tool Plus Clone VW DQ200 Gearbox 4

key tool plus will show you the wiring diagram

You are allowed to make connections via solder or solderless way.

xhorse has released optional vw EGS solder free adapters for

1. XDNP55 DQ200
2. XDNP56 DL382
3. XDNP58 DL501
4. XDNP59 DQ250
5. XDNP60 VL381

Xhorse VVDI Key Tool Plus Clone VW DQ200 Gearbox 5

these adapters could make jobs easier

1.if you have XDNP55 DQ200 adapter, connect it with bosh ecu adapter , ecu adapter and 12v adapter, then connect it with keytool plus

2. if doesn’t have DQ200 solder free adapter, find yourself wiring and make the connection shown as the picture above.

Press Read- EEPROM

Xhorse VVDI Key Tool Plus Clone VW DQ200 Gearbox 6

Read data success

Xhorse VVDI Key Tool Plus Clone VW DQ200 Gearbox 7

Xhorse VVDI Key Tool Plus Clone VW DQ200 Gearbox 8

Data will auto backup
Save file, i.e Golf.xxxx

Xhorse VVDI Key Tool Plus Clone VW DQ200 Gearbox 9

Go back to the main function menu, Select Data Edit function -Local file-PAD_Prog
DQ200 gearbox original eeprom file was saved here

You can share or upload data to pc or other xhorse tools.

The saved file can be found here

xhorse key tool plus can also write DQ200 to clone gearbox. More car brand and gearbox type will be released in the feature.
