Xhorse VVDI Key Tool Plus Add Porsche Macan Smart Key No Soldering

 How-to: add a new smart key to a Porsche Macan BCM 1N35H with xhorse vvdi key tool plus and  XDNP17 BCM solder free adapter.



3 Steps to complete key programming:

Step 1: Read D-FLASH

Xhorse VVDI Key Tool Plus Add Porsche Macan Smart Key 1

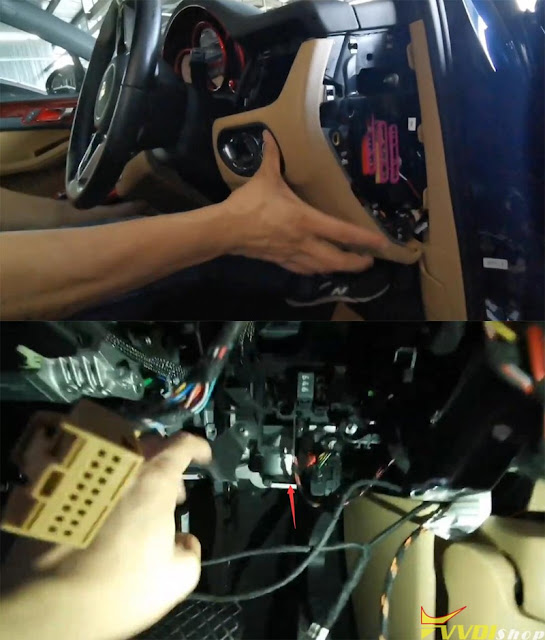

Remove BCM module under instrument cluster on the driver side

Xhorse VVDI Key Tool Plus Add Porsche Macan Smart Key 2

Connect BCM module with key tool plus via XDNP17 BCM solder free adapter
Go to Prog- IMMO-Porsche- BCM 1N35H Backup- Adapter- Read

Xhorse VVDI Key Tool Plus Add Porsche Macan Smart Key 3

Xhorse VVDI Key Tool Plus Add Porsche Macan Smart Key 4

Xhorse VVDI Key Tool Plus Add Porsche Macan Smart Key 5

Read D-flash

Xhorse VVDI Key Tool Plus Add Porsche Macan Smart Key 6

Xhorse VVDI Key Tool Plus Add Porsche Macan Smart Key 7

Xhorse VVDI Key Tool Plus Add Porsche Macan Smart Key 8

Save D-flash data



Step 2: Make dealer key

Xhorse VVDI Key Tool Plus Add Porsche Macan Smart Key 9

Xhorse VVDI Key Tool Plus Add Porsche Macan Smart Key 10

Go to Immo Programming- Porsche- New Porsche Key Generate dealer key- Generate key-EEPROM 1N35H

Load eeprom D-flash read in step 1
Select an unused key position

Insert new key into induction coil

Xhorse VVDI Key Tool Plus Add Porsche Macan Smart Key 11

Xhorse VVDI Key Tool Plus Add Porsche Macan Smart Key 12

Save new eeprom data

Xhorse VVDI Key Tool Plus Add Porsche Macan Smart Key 13

Xhorse key tool plus generated dealer key successfully.  There are 2 ways to make a new key.

1). Write back the new data to vehicle (upload newly eeprom).
2) Or after make dealer key add over obd to car (learn key via OBD by uploading original d-flash we read from the car)
 Here we prefer OBD key learning method.  Reinstall BCM module back to car.



Step 3: Learn key

Insert the original key into igntion switch, turn on ignition

Xhorse VVDI Key Tool Plus Add Porsche Macan Smart Key 14

Xhorse VVDI Key Tool Plus Add Porsche Macan Smart Key 15


Select New Porsche Key -Key Learning- Learn key
Upload original d-flash we read in Step 1
Enter the number of keys to be programmed: 2

Xhorse VVDI Key Tool Plus Add Porsche Macan Smart Key 16

Check key status in the dashboard

It shows 02-01, 1st key learn successfully, insert 2nd key quickly to ignition to complete 02-02 key learning.

Xhorse VVDI Key Tool Plus Add Porsche Macan Smart Key 17

All keys have been learned successfully.

Remote control works fine, the new key can star vehicle.

Done.
