Xhorse Key Tool Plus Full Adapter List and Diagram

 We have made a xhorse solder-free adapters list but without function explanation and connection diagram. Here is another complete adapters list for xhorse vvdi key tool plus and mini prog with function and wiring diagram.



Press Control+ F to search for the adapter/wiring you desired.



1. XDNP10 EEPROM Adapter

Function: can be used to read various EEPROM data with key tool plus and mini prog.

Connection:



2.  XDNP11 BMW CAS3/CAS3+ Adapter

Function:  read BMW CAS3 CAS3+ data without soldering, then generate dealer key with data.

Connection:

3. XDNP12 BMW CAS4/CAS4+ Adapter

Function: read BMW CAS4 CAS4+ data without soldering, then generate dealer key with data.

Connection:



4. XDNP13 DB9 Cable (for Benz EIS/EZS Adapters)

Function:  DB9 Wiring Harness can be used to connect with Mini Prog to read Benz EZS/EIS data (for password online calculation) without soldering

Connection:

5. XDNP14 DB15-DB25 Adapter (EWS4 Adapter Converter)

Function:  This adapter is used to connect Key Tool Plus / Mini Prog to the BMW EWS4 adapter to read EWS4 data without soldering.

Connection:



6. XDNP15 DB15-PS2 (RENEW Adapter Converter)

Function:  to renew remote with key tool plus/mini prog and renew adapter

Connection:



7. XDNP16 Land rover KVM Adapter

Function:

Read Jaguar Land rover KVM data with key tool plus and mini prog without soldering, then generate dealer key with data.

Can be used for 2015-2018 JLR add key and all keys lost.

Connection:

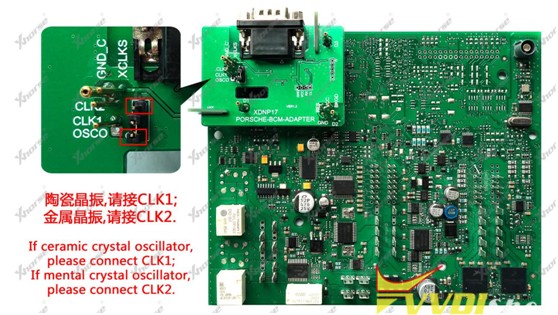

8. XDNP17 Porsche  BCM Adapter

Function:  read Porsche BCM data with keytool plus and mini prog without soldering, then generate dealer key.  The adapter can be applied to new Porsche ID49 chip add key and all keys lost.



Connection:



9. XDNP18 BMW E Series FRM Adapter

Function: Read BMW E series FRM Footwell module data no soldering. To repair the FRM module.

Connection:



10. XDNP19 Honda FIT-H Instrument Adapter

Function: to read Honda Fit high equipped MB91F instrument cluster with key tool plus and mini prog

Connection:

11.  XDNP20 Honda Fit-L Instrument Adapter

Function: to read and reset Honda Fit low equipped MB91F instrument cluster with key tool plus and mini prog



Connection:

12.  XDNP21 Hyundai SONATA Adapter

Function:  read and reset Hyundai Sonata MB91F Instrument cluster with key tool plus and mini prog

Connection:



13. XDNP22 12V+5V Power Adapter

Function: provide 12V and 5V power supply

12V: power Bosh adapter or bosh converter to read ECU EGS

5V: Type C to Mini Prog





14. XDNP24 D80/35080 Adapter

Function:  Read and Write BMW cluster 35080 chip to reset mileage for BMW E series and F series chassis. The adapter is used with mini prog and key tool plus.

Connection:



15. XDNP25 Kia K3 Instrument Adapter

Function: Read and reset Kia K3 MB91F Instrument cluster with key tool plus and mini prog without soldering.

Connection:



16. XDNP25 Kia K5 Instrument Adapter

Function:  Read and reset Kia K3 MB91F Instrument cluster with key tool plus and mini prog without soldering.

Connection:



17 XDNP27 Volvo KVM Adapter

Function: Read Volvo KVM data with key tool plus and mini prog. This adapter can be applied to Volvo full smart keylessgo programming.

Connection:







18 XDNP28 Volvo CEM 1 Adapter



Function: Read Volvo CEM data with key tool plus and mini prog. This adapter can be applied to Volvo full smart and semi-smart key programming.

Connection:



19 XDNP29 Volvo CEM2 Adapter



Function: Read Volvo CEM data with key tool plus and mini prog. This adapter can be applied to Volvo full smart and semi-smart key programming.

Connection:



20 XDNP30 Bosh ECU Adapter

Function:  for BMW ECU ISN Reading without soldering.
Support N55 N20 B38 B48 and more than 80% F Series type.



Connection:







21 XDNP33 N20 N55 B38 Interface Board

Function: Read BMW N20 B38 N55 BOSH ECU data to get ISN for BMW F series (CAS4+/FEM/BDC) all keys lost with MINI Prog and VVDI key tool plus without soldering





22 XDNP34 MCU Adapter

Function: read common mcu data with key tool plus and mini prog

if you want to read modules like BMW ews4.x, cas2/3/4, ews3, audi bcm2, audi j518, benz eis and so on, you will need to buy this cable individually.



23 XDNP36 9S12XE Adapter

Function: Read and write Motorola MCUs data with  key tool plus and mini prog



Connection:





24 XDNP40 Benz ELV Adapter (for Key Tool Plus Only)

Function: Read and Write Mercedes Benz ELV chip data to repair ELV with key tool plus



25 XDNP41 MC68HC05X32 Adapter

Function: The XDNP41 MC68HC05 adapter can be used to read old MC68HC05X32 mcus which is common on Mercedes Benz ELV.
The adapter can be used with mini prog and key tool plus.



Connection:

26 XDNP45 Audi J518 Adapter



Function: Read and Backup EEPROM and FLASH data for Audi J518 to program A6L, Q7 OEM 8E key (Add key and all keys lost)
Write the new data if needed
Mask: 3L40K, 1L59W

Connection:



27 XDNP46 VAG MG1CS001 ECU Interface Board

Function: Read VAG MG1CS001 ECU data with key tool plus and mini prog



28 XDNP47 TMS370 Adapter

Function: Read old VW Jetta immobilizer data with key tool plus and mini prog. To program old Jetta ID42 chip key (add key and all keys lost)



29 XDNP48 Dephi 48 IMMO Adapter

Function:

Read old Great Wall Havel Delphi 48 immobilizer data. To program Havel ID48 chip key (add key and all keys lost).

Connection:





30 XDNP49 B48/B58 Interface Board

Function: To read BMW B48/N58 ecu data to get ISN with mini prog and key tool plus without soldering. The ISN can be used for BMW F series (CAS4+\FEM\BDC) all keys lost programming

Connection:



31 XDNP50 BMW_EWS3 Adapter

Function: read BMW EWS3 immo data with key tool plus and mini prog without soldering.



32 XDNP52 Volvo CEM MPC5748G Adapter

Function: Read Volvom Geely CEM data with key tool plus and mini prog. Then OBD program key with key tool plus.







33. XDNP53 Volvo CEM MPC5646C Adapter

Function: Read Volvom Geely CEM data with key tool plus and mini prog. Then OBD program key with key tool plus.



34 XDNP54 Honda Civic Instrument Adapter

Function: Read and reset Hona Civic instrument cluster data with key tool plus and mini prog





35 XDNP55 Audi EGS DQ200 Gearbox Adapter

Function: Read VW Audi DQ200 EGS gearbox TCU with key tool plus and mini prog without soldering





36 XDNP56 VW EGS DL382 Gearbox Adapter

Function: Read VW Audi DL382 EGS gearbox TCU with key tool plus and mini prog without soldering







37 XDNP57 Honda Vezel Instrument Adapter

Function: Read and reset Hona Vezel instrument cluster data with key tool plus and mini prog

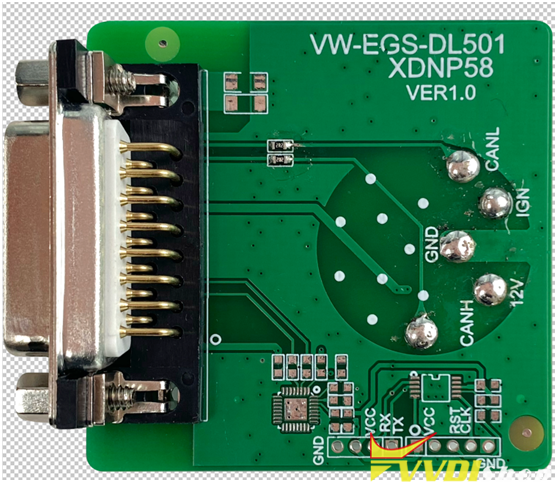

38 XDNP58 VW EGS DL501 Gearbox Adapter



Function: Read VW Audi DL501 EGS gearbox TCU with key tool plus and mini prog without soldering





39. XDNP59 VW EGS DQ250 Gearbox Adapter

Function: Read VW Audi DQ250 EGS gearbox TCU with key tool plus and mini prog without soldering



40. XDNP60 VW EGS VL381 Gearbox Adapter

Function: Read VW Audi VL381 EGS gearbox TCU with key tool plus and mini prog without soldering



41 XDKP30 Multi-function adapter

Function:



The XDKP30 Multi Function converter can be used with vvdi key tool plus and mini prog programmer

It is compatible with following adapters:

VVDI Prog Bosch ECU Adapter

VVDI MB EZS EIS adapters

BMW EWS4 Adapter

Renew adapter (for MINI PROG Only)
