VVDI Key Tool Plus Program Subaru Legacy 2005 Key

Successfully programmed a new spare key for a 2005 Subaru Legacy using xhorse vvdi key tool plus.

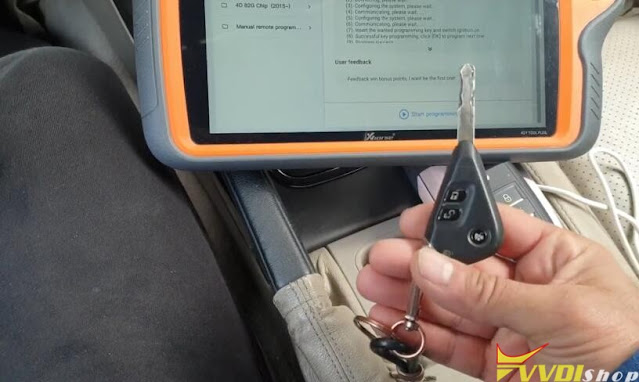

This is the original key

VVDI Key Tool Plus Program Subaru Legacy 2005 Key 1

This the new key we try to program. It is Xhorse MQB style remote.

Menu path: Immo programming->Subaru->Select from model->Legacy->4D 60/62 Chip (-2013)

Then follow key tool plus instruction to add a new key

Both keys working without problem. Remote control works too.
