VVDI Key Tool Plus Program Porsche Macan 2018 All Keys Lost

It is a Porsche Macan 2018, all keys have lost. We will show how to program key using xhorse vvdi key tool plus.

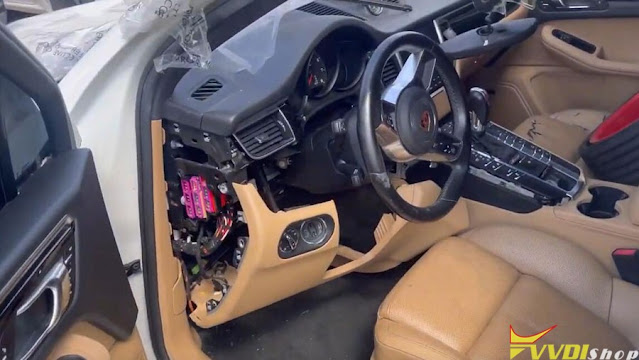

We’re gonna disconnect and remove the panel and then take out the BCM.

VVDI Key Tool Plus Program Porsche Macan 2018 All Keys Lost 1

VVDI Key Tool Plus Program Porsche Macan 2018 All Keys Lost 2

Connect BCM module with xhorse Porsche XDNP17 BCM solder free adapter.

VVDI Key Tool Plus Program Porsche Macan 2018 All Keys Lost 3

Go to Prog function, select Porsche BCM 1N35HH-Backup->Adapter type

VVDI Key Tool Plus Program Porsche Macan 2018 All Keys Lost 4

VVDI Key Tool Plus Program Porsche Macan 2018 All Keys Lost 5

Read DFlash

VVDI Key Tool Plus Program Porsche Macan 2018 All Keys Lost 6

Read and save D-flash

VVDI Key Tool Plus Program Porsche Macan 2018 All Keys Lost 7

VVDI Key Tool Plus Program Porsche Macan 2018 All Keys Lost 8

Go back to IMMO programming function. Select Porsche->New Porsche key- generate dealer key-> Generate Key->EEPROM 1N35H

VVDI Key Tool Plus Program Porsche Macan 2018 All Keys Lost 9

VVDI Key Tool Plus Program Porsche Macan 2018 All Keys Lost 10

VVDI Key Tool Plus Program Porsche Macan 2018 All Keys Lost 11

Upload eeprom just saved

VVDI Key Tool Plus Program Porsche Macan 2018 All Keys Lost 12

VVDI Key Tool Plus Program Porsche Macan 2018 All Keys Lost 13

Select an unused key position

VVDI Key Tool Plus Program Porsche Macan 2018 All Keys Lost 14

Generate dealer key successfully.

VVDI Key Tool Plus Program Porsche Macan 2018 All Keys Lost 15

VVDI Key Tool Plus Program Porsche Macan 2018 All Keys Lost 16

Save new key data.

Remove solder free adapter, install BCM back to vehicle. Connect xhorse key tool plus with vehicle.

Select IMMO Programming->Porsche->New Porsche Key-Key Learning

Upload new key data saved above

Input number of keys to be learnt

VVDI Key Tool Plus Program Porsche Macan 2018 All Keys Lost 17

VVDI Key Tool Plus Program Porsche Macan 2018 All Keys Lost 18

Then follow key tool plus instructions to finish key learning.

Test the new key.

Done.

www.vvdishop.com
