Program Audi A8 2019 Key with Xhorse BCM2 Adapter

 Tutorial: How to read Audi A8 2019 BCM2 (version 0825) immo data so you can program all keys lost with xhorse vvdi key tool plus and BCM2 solder free adapter.



Connect BCM2 adapter with vvdi key tool plus and BCM2 module

Program Audi A8 2019 Key with Xhorse BCM2 Adapter 1

Program Audi A8 2019 Key with Xhorse BCM2 Adapter 2

In key tool plus, select IMMO Programming->Audi->Select by type->5th Immobilizer system-> Read BCM2 data->Prog read encrypted BCM2->A6L/A7/A8 2015- all keys lost (0824/0825/0827)->Adapter Method

Program Audi A8 2019 Key with Xhorse BCM2 Adapter 3

Program Audi A8 2019 Key with Xhorse BCM2 Adapter 4

Program Audi A8 2019 Key with Xhorse BCM2 Adapter 5

Step 1: Identify module information
Save module information

Program Audi A8 2019 Key with Xhorse BCM2 Adapter 6

Program Audi A8 2019 Key with Xhorse BCM2 Adapter 7

Program Audi A8 2019 Key with Xhorse BCM2 Adapter 8

Step 2: Read Immo Data
Calculating immo data online
Save Immo data

Program Audi A8 2019 Key with Xhorse BCM2 Adapter 9

Program Audi A8 2019 Key with Xhorse BCM2 Adapter 10

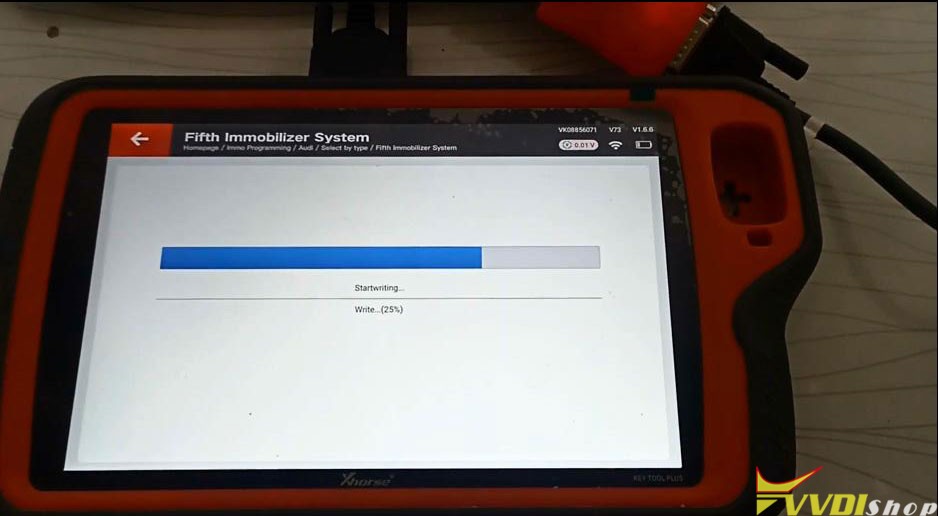

Press Write to write data back to bcm2 module.

Program Audi A8 2019 Key with Xhorse BCM2 Adapter 11

Program Audi A8 2019 Key with Xhorse BCM2 Adapter 12

Program Audi A8 2019 Key with Xhorse BCM2 Adapter 13

Write completed.

Now you can make dealer key and learn key with the immo data.

Restore BCM2 module and install vehicle, check whether the vehicle status is normal.

After it is normal, go to the 5th generation immo system interface to load the immo datae to generate the dealer key with vvdi key tool plus.
