Add Lincoln MKC 2019 Smart Key with VVDI Key Tool Plus

Xhorse VVDI Key Tool Plus is really good at most of these newer Fords and Lincoln. This is a Lincoln MKC 2019. We will show how to add smart key to this model.

Select IMMO programming->Lincoln->MKC-> smart key programming->2016 onwards

Add Lincoln MKC 2019 Smart Key with VVDI Key Tool Plus 2

Add Lincoln MKC 2019 Smart Key with VVDI Key Tool Plus 3

Add Lincoln MKC 2019 Smart Key with VVDI Key Tool Plus 4

Add Lincoln MKC 2019 Smart Key with VVDI Key Tool Plus 5

Read key number. There are 2 keys in the system.

Then we Read PIN Code. Turn on ignition switch.

If the vehicle has active alarm, you need to disable the alarm. Xhorse has a Ford AKL alarm bypass cable. In this case, it does not have active alarm. Press OK to continue.

Add Lincoln MKC 2019 Smart Key with VVDI Key Tool Plus 7

Add Lincoln MKC 2019 Smart Key with VVDI Key Tool Plus 8

Add Lincoln MKC 2019 Smart Key with VVDI Key Tool Plus 9

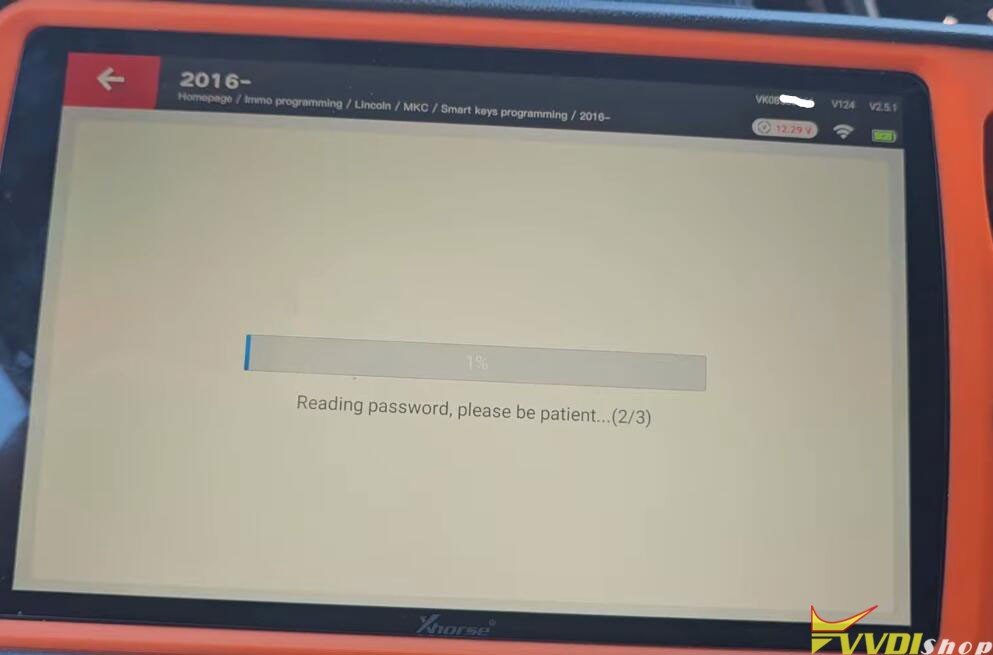

Reading password is in progress.

Switch ignition off and wait for 10 seconds, then switch ignition on.

Read password completed.

Select Add a key function in vvdi key tool plus.

Open then close the driver door. Turn off the ignition switch.

Insert the new key to be programmed to key slot.

Key programming successfully.

Switch ignition off wait 10 seconds then we’ll switch the ignition back on. It is done.

www.vvdishop.com
