Change MB BE Key Frequency with VVDI Key Tool Plus

This is a guide on how to change Mercedes Benz VVDI BE Key frequency with Xhorse VVDI Key Tool Plus Pad. In this way, users can modify BE key frequency between 315Mhz & 433Mhz.

Operation Steps

Path: Immo programming >> Europe >> Benz >> Select from system >> Read write key >> VVDI BE key >> Start programming

Change MB BE Key Frequency with VVDI Key Tool Plus 1

Change MB BE Key Frequency with VVDI Key Tool Plus 2

Change MB BE Key Frequency with VVDI Key Tool Plus 3

Change MB BE Key Frequency with VVDI Key Tool Plus 4

Change MB BE Key Frequency with VVDI Key Tool Plus 5

Insert Xhorse BE Key Pro into VVDI Key Tool Plus infrared remote port.

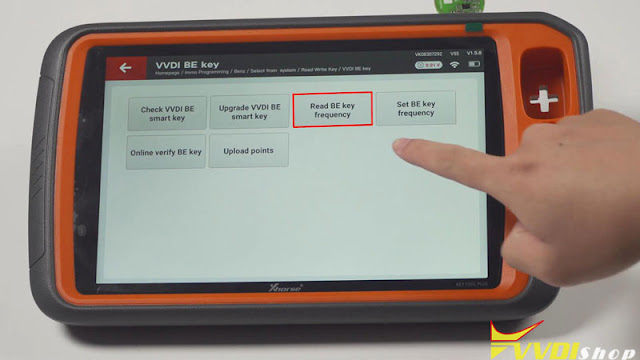

Read BE key frequency at first.

This key frequency is 315Mhz.

Change MB BE Key Frequency with VVDI Key Tool Plus 6

Change MB BE Key Frequency with VVDI Key Tool Plus 7

Change MB BE Key Frequency with VVDI Key Tool Plus 8

Go back to set BE key frequency.

Here’s allowed to set 315Mhz or 433Mhz.

Click on 433Mhz.

Set frequency success!

Change MB BE Key Frequency with VVDI Key Tool Plus 9

Change MB BE Key Frequency with VVDI Key Tool Plus 10

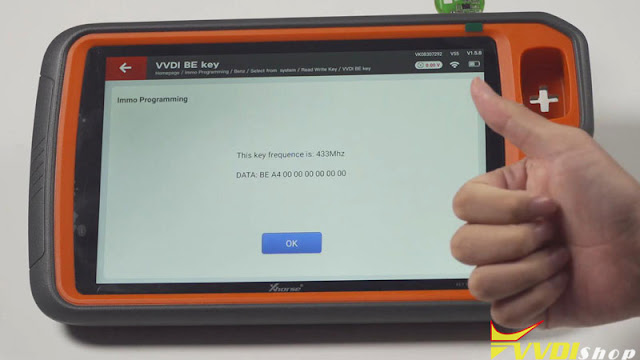

Check BE key frequency again.

It has been changed to 433Mhz.

Successfully done!

Quite an easy job, 1 minute is enough.

You can also change the frequency by removing the resistor.

Check http://blog.vvdishop.com/change-xhorse-vvdi-be-key-frequency/
