Program 2019 Ford Explorer All Keys Lost by VVDI Key Tool Plus

This is a US Ford Explorer year 2019 with push start. Xhorse vvdi key tool plus read pin and program all keys lost successfully.

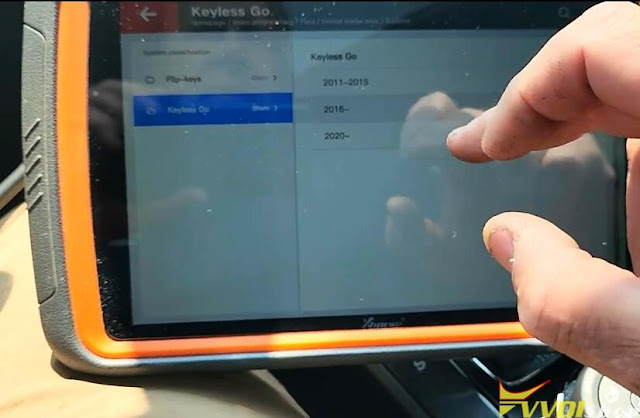

Go to Immo Programming->Ford->United State->Explorer->Keyless Go->2016 onwards-> Key programming without active alarm

Read PIN code

Program 2019 Ford Explorer All Keys Lost by VVDI Key Tool Plus 2

Program 2019 Ford Explorer All Keys Lost by VVDI Key Tool Plus 3

Program 2019 Ford Explorer All Keys Lost by VVDI Key Tool Plus 4

Program 2019 Ford Explorer All Keys Lost by VVDI Key Tool Plus 5

Program 2019 Ford Explorer All Keys Lost by VVDI Key Tool Plus 6

If the vehicle immo alarm is activated, you need to disable alarm before programming key. Here this car without alarm. Press ok to continue.

Switch ignition on by press Start button.

Read pin code success.

Program 2019 Ford Explorer All Keys Lost by VVDI Key Tool Plus 7

Select Add key

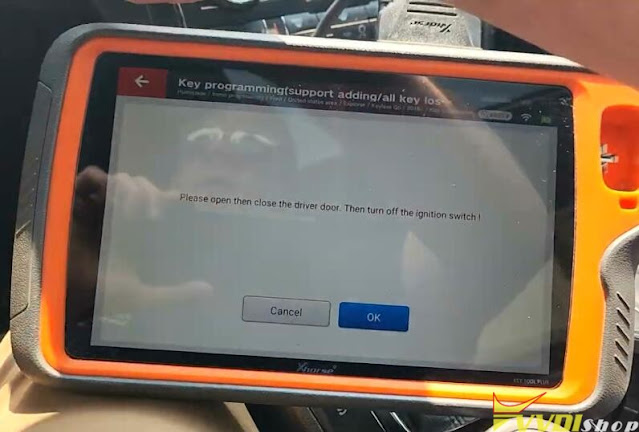

Open and close driver door. Turn off the ignition.

Program 2019 Ford Explorer All Keys Lost by VVDI Key Tool Plus 8

Program 2019 Ford Explorer All Keys Lost by VVDI Key Tool Plus 9

Insert the new key into key slot (Inside the trash box that behind the cup holder)

Program key successfully.

Test the new key.

Xhorse key tool plus also programs Ford Explorer 2020 onwards all keys lost, you will need a Ford bypass cable.
