VVDI Key Tool Plus Program VW Vento 2016 MQB Key

Successfully programmed Volkswagen Vento 2016 MQB48 smart key (add a spare key) using xhorse vvdi key tool plus.

in this model does not ask for sync data it is still 4th generation.
megamos MQB 48 chip.
requires License from mqb48.

MCU processor: Renesas A2C00889000

Read immo data method: lift pin

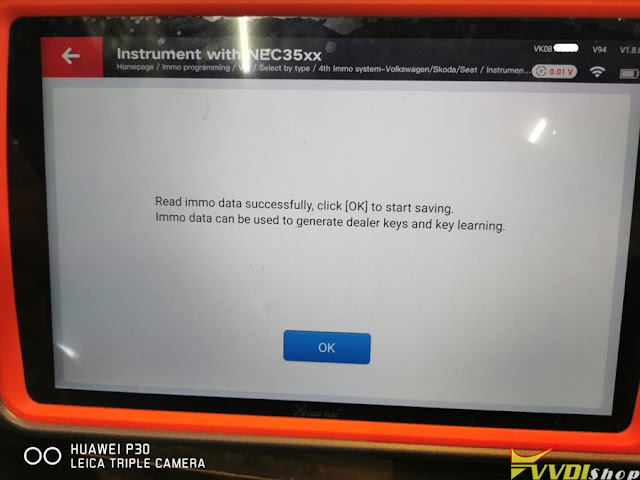

Read immo data you will get CS and PIN, generate dealer key and learn key.

VVDI Key Tool Plus Program VW Vento 2016 MQB Key 1

VVDI Key Tool Plus Program VW Vento 2016 MQB Key 2

VVDI Key Tool Plus Program VW Vento 2016 MQB Key 3

VVDI Key Tool Plus Program VW Vento 2016 MQB Key 4

VVDI Key Tool Plus Program VW Vento 2016 MQB Key 5

VVDI Key Tool Plus Program VW Vento 2016 MQB Key 6

Comments

Where to Get VAG MQB Sync Data for VVDI Key Tool Plus?

New user report: Made MQB Skoda Octavia 2018 all keys lost with xhorse tools. Tested VVDI Prog and VVDI key tool plus read MQB dashboard. Both devices have bought the new VAG MQB license . Without you cannot read the data on dashboard. and you need internet connection when you start to read the dashboard. Because device confirm you have license before start the reading. There is a e-mail that responded fast and asked sync data for there 60$ cost and get data in less then 3min. email address: sync_data_calcu@qq.com I done already few with 100% success. Lifting pin not very dangerous. They answered fast usually I communicate via wechat and there have take time. Same place need to solder if use key tool plus . But key tool plus does not need 1k oom and no extra 12v as vvdi prog. 2019 build year Skoda Superb akl situation made successfully today. same dashboard 160€ and they give you all data what need to make key. Just f...

Read MQB48 RH850 RF701401 Dash by VVDI Key Tool Plus

Another Xhorse RH850 adapter tutorial: how to read VAG MQB NEC35XX RH850 DF701401 dashboard with xhorse vvdi key tool plus and RH850 cable. Procedure: Select Immo Programming>>VW>>Select by Type>>MQB Immo System>>Dashboard-MQB48 (VDO/JCI-NEC35XX Locked)-> Read NEC35XX Chip>>Soldering>>R7F701401 Check wiring diagram Remove components and solder rh850 cable with cluster Connect rh850 cable with key tool plus Read and save immo data Select Get Immo data Upload rh850 DF702401 data save above to calculate immo data Then save immo data Now you can generate dealer key or learn key with the immo data www.vvdishop.com

How to Add Key 2019 VW POLO MQB49/5C by Xhorse VVDI Key Tool Plus

Today 2019 VW POLO MQB49/5C add key success. Used Xhorse vvdi key tool plus pad for the whole process. Add key mqb platform (Johnson cluster and new MQB49/5C type on key tool plus are online. Read data with pad, then sent it for online calculation (cost 1 token – must be charged before). You have to use a token to add a spare key from working key. After 3 minutes I got immo data file which automatically saved into the device. After that you make dealer key (used Xhorse proxy MQB style) and program to the car as usual. Test report from Mr. Hrdina.
