Xhorse VVDI Key Tool Plus Add 2019 Peugeot 3008 4A Smart Key

 This is a tutorial on how to add a 2019 Peugeot 3008 proximity key with Xhorse VVDI Key Tool Plus by OBD. Please learn the procedure below step by step.



Tools Required

Xhorse VVDI Key Tool Plus

XM38 Smart Key or XZPG00EN Special Smart Key for Peugeot Citroen DS

Battery Maintainer



  1. Use a maintainer to keep the battery stable.
  2. Connect VVDI Key Tool Plus to the OBD port of the vehicle.



Operation

Remote program >> Europe >> Peugeot >> 3008 >> 3008(2016+) Remote FSK ID4A >> Generate

Writing data, please wait…

Burn success.

Xhorse VVDI Key Tool Plus Add 2019 Peugeot 3008 4A Smart Key 1

Xhorse VVDI Key Tool Plus Add 2019 Peugeot 3008 4A Smart Key 2

IMMO programming >> Europe >> Peugeot >> Password reading >> Type 3 CAN(adding) >> Start programming >> Read password

Please make sure ignition switch is at OFF status.

Switch ignition off and wait for 5s, then switch on, keep repeating this process.

Password has been read out.

Take note of the password. You’ll need it afterwards.

Xhorse VVDI Key Tool Plus Add 2019 Peugeot 3008 4A Smart Key 3

Xhorse VVDI Key Tool Plus Add 2019 Peugeot 3008 4A Smart Key 4

Xhorse VVDI Key Tool Plus Add 2019 Peugeot 3008 4A Smart Key 5

Select by model >> Peugeot >> 3008 >> With smart >> Start programming >> Start keys programming

Please turn on double flash lamps(security warning light).



Note: the wrong password will be forbidden to match!



Please enter the password



Place the wanted programming smart key into sensing coil

(In the smart key slot inside the glove box under start button or at the key sign at the bottom left of steering wheel)

Note: If there is a key that can start the car, insert the key first.

Current key match successfully.

Whether to continue to match next one? Yes.



Please remove the smart key, put the next wanted programming smart key into the sensing coil position.



Program complete!

Start the vehicle after each key performs the following operations:

  1. Insert the smart key to the card slot.
  2. Switch ignition to ON(do not start the car) and wait for 3s then switch off, then remove the smart key and click LOCK button for 5s…

Note: If the remote still can not use after performing the above operations, try the following operations:

  1. Remove the smart key, switch ignition on for 3s then switch off, then click LOCK button for 5s.
  2. Leave the key near the induction coil inside the car, close the door, and wait for 30 minutes.

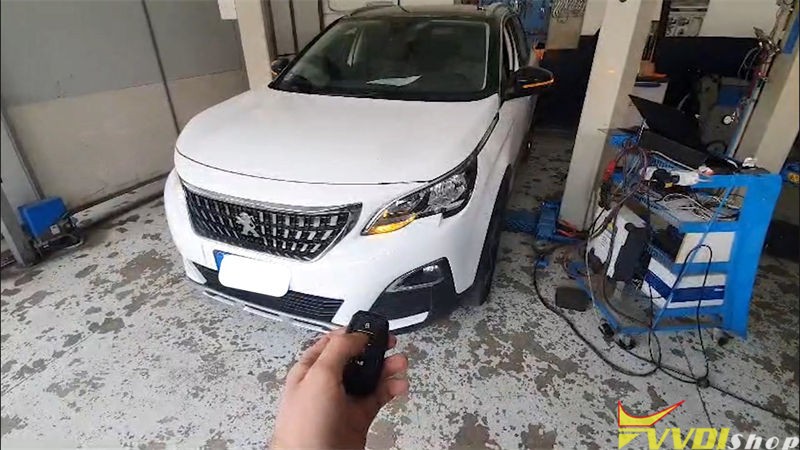

Test the new key, it can work.

Perfect done!

Xhorse VVDI Key Tool Plus Add 2019 Peugeot 3008 4A Smart Key 6

Xhorse VVDI Key Tool Plus Add 2019 Peugeot 3008 4A Smart Key 7

Xhorse VVDI Key Tool Plus Add 2019 Peugeot 3008 4A Smart Key 8

Xhorse VVDI Key Tool Plus Add 2019 Peugeot 3008 4A Smart Key 9

Xhorse VVDI Key Tool Plus Add 2019 Peugeot 3008 4A Smart Key 10
