Range Rover 2017 Add a Key by Xhorse Key Tool Plus on Bench

 Toady I’m gonna try to add a key for 2017 Range Rover with Xhorse VVDI Key Tool Plus on Bench.



Tools

A Land Rover KVM module chip

VVDI Key Tool Plus

A new smart key to be programmed.



Having been removed KVM module, welded wires to connect Key Tool Plus, I’ll suggest to use Xhorse Solder Free Adapter to save time.



You may refer to

Program Land Rover KVM 2015-2018 AKL with Solder Free Adapter
http://blog.vvdishop.com/xhorse-vvdi-key-tool-plus-program-land-rover-kvm-2015-2018-akl/

xhorse-key-tool-plus-range-rover-2017-add-key-1



Procedure

  1. Read, Save & Load Key Data

To get chip info, it requires to unlock firstly. Press

Prog >> Immo >> Land Rover >> RFA – SECURED (MC9S12XEQ384)(WELD) >> More functions >> Unlock >> OK >> Begin >> Continue



Unlocked successfully: FC (remember the code)



Go back to press

Read >> D-FLASH >> Begin >> Continue >> Select “Save and edit”, OK >> Save as >> Rename, OK

Save success.



Go back to read EEE & P-FLASH.

Repeat same operations to rename and save files.

xhorse-key-tool-plus-range-rover-2017-add-key-2

xhorse-key-tool-plus-range-rover-2017-add-key-3

xhorse-key-tool-plus-range-rover-2017-add-key-4

xhorse-key-tool-plus-range-rover-2017-add-key-5

Go back to main page, press

Immo data tool >> Europe >> Land Rover >> Rover/Jaguar 2015- >> MC9S12XET256/MC9S12XEQ384 >> Begin



Please load RFA DFLASH, press “OK”.

Select D-FLASH file, press “Open”.



Please load RFA EEPROM, press ”OK”.

Select “EEE” file, Press “Open”.



Do you want to load BCM DFLASH? Press “No”.

xhorse-key-tool-plus-range-rover-2017-add-key-6

xhorse-key-tool-plus-range-rover-2017-add-key-7

xhorse-key-tool-plus-range-rover-2017-add-key-8

xhorse-key-tool-plus-range-rover-2017-add-key-9

  1. Make Dealer Key

Put the new key into Xhorse Key Tool Plus slot.(Better to remove key shell to detect)

Select a blank key position: Key 3, press “Make dealer key”.

Save here >> OK

Save here >> OK



Prepare dealer key success.

Use Key Tool Plus to reverse write the newly saved data to RFA mode or BCM mode.

Press “OK”.



Go back to main page, press

Prog >> Immo >> Land Rover >> RFA – SECURED (MC9S12XEQ384)(WELD) >> Write >> D-FLASH >> Begin >> OK



Select D-FLASH file saved just now, press

OK >> Begin >> Continue

Write completed.



Repeat same operations to write EEE.

xhorse-key-tool-plus-range-rover-2017-add-key-10

xhorse-key-tool-plus-range-rover-2017-add-key-11

xhorse-key-tool-plus-range-rover-2017-add-key-12

xhorse-key-tool-plus-range-rover-2017-add-key-13

xhorse-key-tool-plus-range-rover-2017-add-key-14

Go back to “More functions” when writing completed. Press

Lock >> Begin >> Continue

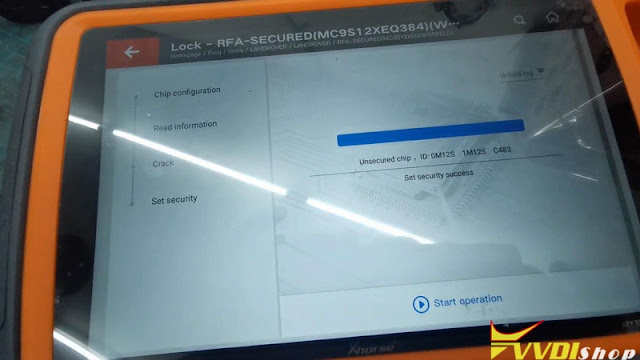

Enter chip secret key: FC, press “OK”.



Set security success.

Done!



After installing back KVM module, let’s test the new key.

Its remote works fine, and it can start the engine normally.

xhorse-key-tool-plus-range-rover-2017-add-key-15

xhorse-key-tool-plus-range-rover-2017-add-key-16

xhorse-key-tool-plus-range-rover-2017-add-key-17

This is using VVDI Key Tool Plus to program a new smart key for 2017 Range Rover successfully.
