How to Add Audi Q7 2010 Kessy Key with VVDI Key Tool Plus?

 Xhorse VVDI Key Tool Plus Pad new test report: successfully added a new key on an Audi Q7 4th generation immobilizer.



Main Steps:

1. Read EEPROM

2. Make dealer key

3. Learn key





Procedure:

Connect key tool plus pad with vehicle

Insert original key into ignition

Turn on vvdi key tool plus pad, select IMMO Programming->Audi->Select by Type->4th IMMO System-Audi->A6L/Q7/Allroad

vvdi-key-tool-plus-pad-2010-audi-q7-1

vvdi-key-tool-plus-pad-2010-audi-q7-2

vvdi-key-tool-plus-pad-2010-audi-q7-3

vvdi-key-tool-plus-pad-2010-audi-q7-4

vvdi-key-tool-plus-pad-2010-audi-q7-5

Begin to program key

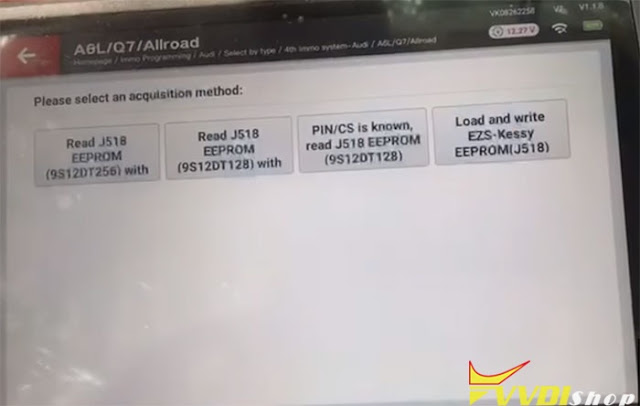

Select Read EZS Kessy EEPROM by OBD->Read J518 EEPROM (9S12DT128)

vvdi-key-tool-plus-pad-2010-audi-q7-6

vvdi-key-tool-plus-pad-2010-audi-q7-7

Most car before 2009 use chip 9S12DT128, most car after 2009 use chip 9S12DT(G)256
but there’s some car in 2009, you need try yourself
Start transfer/receive data

vvdi-key-tool-plus-pad-2010-audi-q7-8


Read EEPROM data successfully
Switch OFF ignition, then switch ON

vvdi-key-tool-plus-pad-2010-audi-q7-9

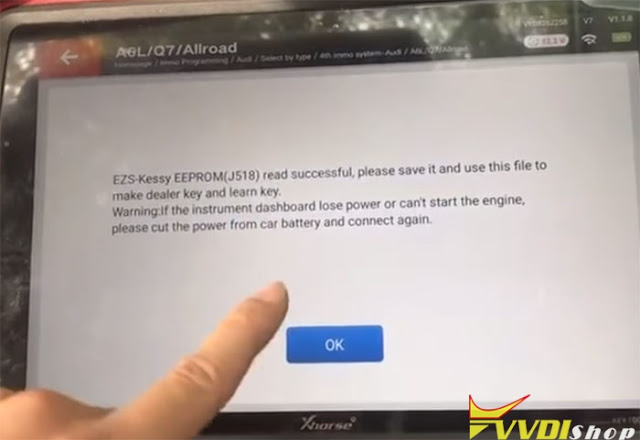

EZS Kessy EEPOM J518 read successful, save it and use this file to make dealer key and learn key

If instrument dashboard lose power or can’t start the engine, cut the power for car battery and connect again

vvdi-key-tool-plus-pad-2010-audi-q7-10


Save file success

vvdi-key-tool-plus-pad-2010-audi-q7-11


Select Make Dealer Key

vvdi-key-tool-plus-pad-2010-audi-q7-12


Place an unlocked 8E chip into the coil, click OK to continue

vvdi-key-tool-plus-pad-2010-audi-q7-13


Select eeprom file just saved

vvdi-key-tool-plus-pad-2010-audi-q7-14


VVDI Key Tool Plus makes dealer key success
Select Key Learn function

vvdi-key-tool-plus-pad-2010-audi-q7-15


Enter number of keys you desired to learn
Start learning key
Insert the dealer keys into ignition switch in turn, and keep firing for 2s. the key change interval should be less than 5s, click ok after complete the programming

vvdi-key-tool-plus-pad-2010-audi-q7-16

vvdi-key-tool-plus-pad-2010-audi-q7-17

All keys successfully learned

Test all keys, remote control and start vehicle

vvdi-key-tool-plus-pad-2010-audi-q7-18

vvdi-key-tool-plus-pad-2010-audi-q7-19

Done.
