VVDI Key Tool Plus Program Smart Watch to Car

Xhorse SW-007 Smart Remote Watch is designed and manufactured by Xhorse & FIYTA. This is an introduction of using Xhorse VVDI Key Tool Plus Pad to program SW-007 smart watch to your car, the tutorial is taking BYD as an example.

How to program?

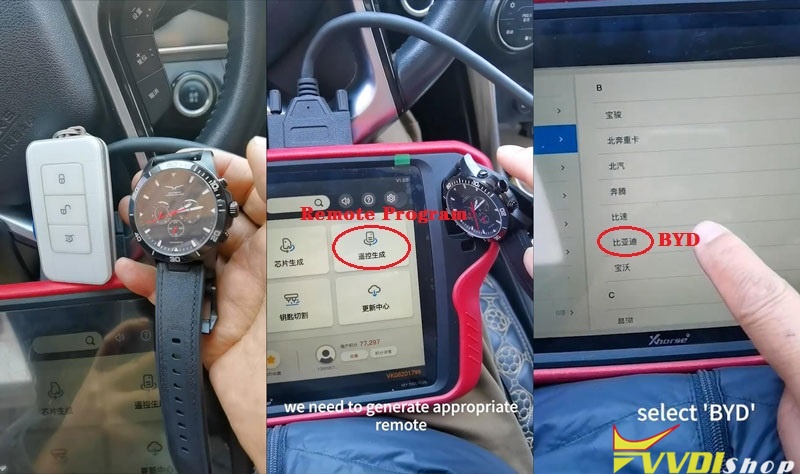

Connect VVDI Key Tool Plus with car OBD;

Put Xhorse SW-007 watch on key slot.

Generate remote

Remote program >> China >> BYD >> Select appropriate model (BYD all types_smart white sliding key) >> Generate remote

vvdi-key-tool-plus-program-smart-watch-1

vvdi-key-tool-plus-program-smart-watch-2

Write password to watch

After generate successfully, press

Transponder clone >> ID46 online calculation >> Start clone >> Write BYD directly

Find out the password from original key, then write it into the smart watch.

vvdi-key-tool-plus-program-smart-watch-3

Program the watch

After completing step2, go to

Immo programming >> BYD >> Select by model >> Select appropriate model (SONG) >> Start >> Clear and match original key or vice key(no need password)

Completed! Now you have a new generated remote watch including keyless go function, locking/unlocking, trunk opening/panic function, etc.

vvdi-key-tool-plus-program-smart-watch-4

vvdi-key-tool-plus-program-smart-watch-5

Let’s test the watch, it can open and starts the car.

Programming has done!

Xhorse Smart Watch will bring much convenience for car owners’ daily life.
