This is a demo of using new device Xhorse VVDI Key Tool Plus Pad to add a remote key for Toyota Corolla Altis 2014.
Prepare a working key & a new key to be programmed.
Connect VVDI Key Tool Plus Pad with OBD.
Turn on ignition.

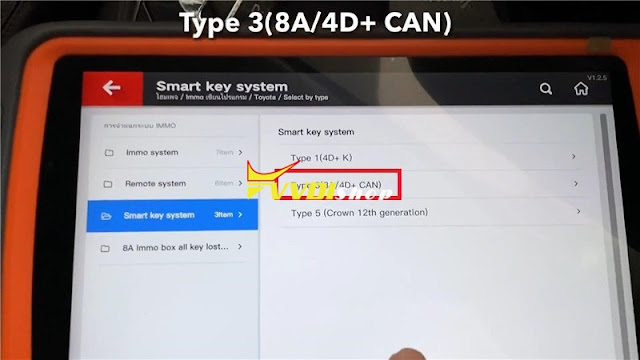

Immo programming >> Asia >> Toyota >> Select by type >> Smart key system >> Type 3(8A/4D+ CAN) >> Start programming >> Read the number of keys

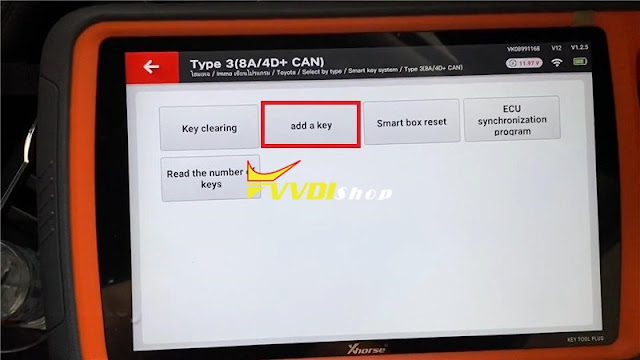

Switch ignition on, press “OK” >> OK >> Add a key
Switch ignition on, press “OK”.
It shows the number of registered keys:2, and remains 5 keys can be registered. Press “OK”.
Keep touching the ignition switch with sign surface of a registered key, complete the operations within 30 seconds after clicking “OK”.
You will hear a beep when touching.
Change to the new key, and keep it touching the ignition switch.
You will hear 2 beeps when touching.
Make sure all steps are completed. Wait for registration to complete.
Key registration succeeded! Press “OK”.
The number of registered keys are 3 now, press “OK”.
Now check if the functions of new key are normal. Alright, it works good.
Program Toyota Corrola Altis 2014 a remote key successfully.
Xhorse Key Tool Plus is an all in one automotive solution tool for locksmith daily use.
