Xhorse VVDI Key Tool Plus Add Audi Q3 2009- Key

Here is the instruction on adding a spare key to Audi Q3 VDO 2009+ by xhorse vvdi key tool plus.

Main steps:

Read immo data

Generate Dealer Key

Reset instrument

Learn Key

Step 1: Read Immo Data

Connect Key Tool Plus with OBD.

Turn ignition on, press

Immo programming >> Europe >> VW >> Automatically diagnose models >> Start programming

Detect instrument type VDO NEC 2009+ UDS

Xhorse VVDI Key Tool Plus Add Audi Q3 2009- Key 1

Xhorse VVDI Key Tool Plus Add Audi Q3 2009- Key 2

Select Read Immo data

Xhorse VVDI Key Tool Plus Add Audi Q3 2009- Key 3

Xhorse VVDI Key Tool Plus Add Audi Q3 2009- Key 4

Get the working key close to antenna

Switch on with working key before press OK. If car has keyless GO, put the working key nearby car coil and switch on.

Press “OK”.

Select “Login method 1”.

Xhorse VVDI Key Tool Plus Add Audi Q3 2009- Key 5

Xhorse VVDI Key Tool Plus Add Audi Q3 2009- Key 6

Save immo data

Xhorse VVDI Key Tool Plus Add Audi Q3 2009- Key 7

Xhorse VVDI Key Tool Plus Add Audi Q3 2009- Key 8

Reset instrument to activate dash after operation finished

Xhorse VVDI Key Tool Plus Add Audi Q3 2009- Key 9

Xhorse VVDI Key Tool Plus Add Audi Q3 2009- Key 10

Put original key into xhorse key tool plus coil

Select Generate dealer key-load immo data

Upload immo data read above

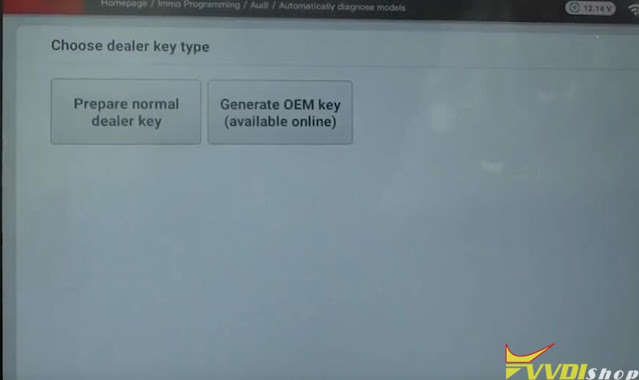

Select Prepare normal dealer key

Xhorse VVDI Key Tool Plus Add Audi Q3 2009- Key 11

Xhorse VVDI Key Tool Plus Add Audi Q3 2009- Key 12

Place an unlocked ID48 chip/key into the coil

Make dealer key success

Xhorse VVDI Key Tool Plus Add Audi Q3 2009- Key 13

Reset instrument

Xhorse VVDI Key Tool Plus Add Audi Q3 2009- Key 14

Xhorse VVDI Key Tool Plus Add Audi Q3 2009- Key 15

Select Key Learn function

You should backup EEPROM and immo data before learn key

Select programming method: Program keys, get the login code from immo data to log in.

Xhorse VVDI Key Tool Plus Add Audi Q3 2009- Key 16

Xhorse VVDI Key Tool Plus Add Audi Q3 2009- Key 17

Put original key into igniton switch

Xhorse VVDI Key Tool Plus Add Audi Q3 2009- Key 18

Input number of keys to be learnt: 2

Upload immo data saved before

Place 1st key into the car sensing coil and don’t remove.

Learn 1st key

Xhorse VVDI Key Tool Plus Add Audi Q3 2009- Key 19

Place the 2nd key close to the antenna and wait

Xhorse VVDI Key Tool Plus Add Audi Q3 2009- Key 20

Learn 2nd key success

Xhorse VVDI Key Tool Plus Add Audi Q3 2009- Key 21
