Xhorse VVDI Key Tool Plus Adds VW MQB48 Key by Pin Lifting

 This is a tutorial on how to read MQB dashboard data to add keys using Xhorse VVDI Key Tool Plus. Before using this feature, make sure you’ve activated Xhorse VAG MQB License and the IMMO database on Key Tool Plus has been upgraded to the latest version.



Preparation

  1. Remove the dashboard from car whether you’re doing MQB all key lost or add key.
  2. Pull off the needles using a tweezer. You can also keep the needles. We removed the needles for a better demonstration.
  3. Unplug the clip and take out the PCB board.
  4. Check the MCU carefully

Xhorse VVDI Key Tool Plus Adds VW MQB48 Key 1

Read VW MQB NEC35xx Data

Now we’ll need to read the chip data on the PCB board.

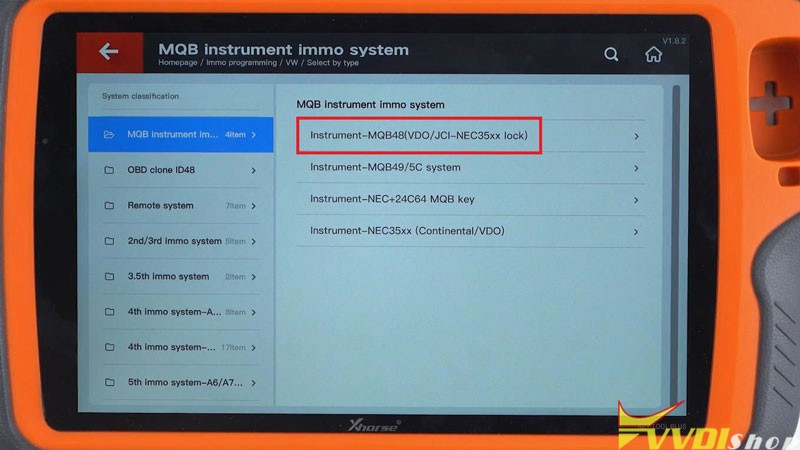

Immo programming >> VW >> Select by type >> MQB instrument immo system >> Instrument – MQB48(VDO/JCI-NEC35xx lock) >> Start programming



Before we read data, please read the disclaimer carefully, make sure you’ve fully understood and agreed with the contents and responsibilities.

OK >> OK

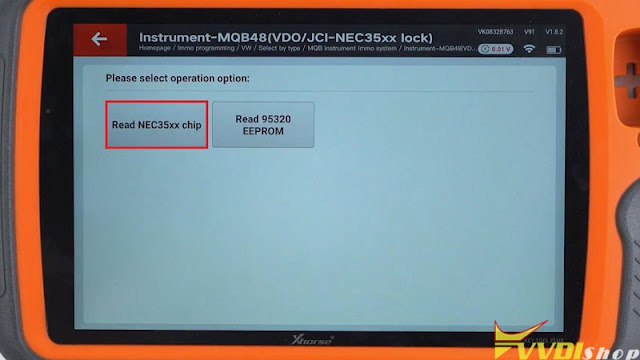

Programmer reads files >> Read NEC35xx chip

Check the wiring diagrams carefully and locate the one that is same to the dashboard MCU. Follow the on-screen instructions and finish the operation.

Xhorse VVDI Key Tool Plus Adds VW MQB48 Key 2

Xhorse VVDI Key Tool Plus Adds VW MQB48 Key 3

Xhorse VVDI Key Tool Plus Adds VW MQB48 Key 4

Xhorse VVDI Key Tool Plus Adds VW MQB48 Key 5

Xhorse VVDI Key Tool Plus Adds VW MQB48 Key 6

Lifting Pin from CPU Instructions

Apply some scaling power onto the pin we’ll lift later.



  1. Find the lift PIN(FVDD) position according to diagram.
  2. Prepare a hot-air gun, set temperature to 355℃/ 671℉, adjust to the lowest speed, focus on the PIN(FVDD) when start operating.
  3. After heating the PIN(FVDD), insert the operating knife under the PIN and lift it slightly up. DON’T lift up too much, just make sure the PIN disconnect with PCB.
  4. Wait until the PIN cooling down, solder a thin wire or an enameled wire onto to the lift PIN, use gummed paper to fix this wire on the back of CPU in case of any movement.
  5. After read/write MCU operation, remove the soldering wire from the lift PIN(FVDD). Use the hot-air gun heating the PIN again, then solder the lift PIN back to PCB(original position).

Now we’ve finished the pin lifting.

Xhorse VVDI Key Tool Plus Adds VW MQB48 Key 7

Xhorse VVDI Key Tool Plus Adds VW MQB48 Key 8

Then we follow the wiring diagram and solder the MCU cable. Connect VVDI Key Tool Plus with the module via DB15 cable.



Read >> Continue

The whole process is gonna take 3-5 minutes.

Reading successfully and now save the data.

The data can be used for generating dealer key or key learning.

Xhorse VVDI Key Tool Plus Adds VW MQB48 Key 9

Xhorse VVDI Key Tool Plus Adds VW MQB48 Key 10

Xhorse VVDI Key Tool Plus Adds VW MQB48 Key 11

Xhorse VVDI Key Tool Plus Adds VW MQB48 Key 12

Xhorse VVDI Key Tool Plus Adds VW MQB48 Key 13

MQB Key Adding

Generate dealer key-Load immo data >> Open immo data file we just saved >> VW >> Prepare normal dealer key >> OK >> Yes >> Add key – you should have a working key

Place the original working key into Key Tool Plus, press “OK”.

Next, just follow the general steps to add key.

Xhorse VVDI Key Tool Plus Adds VW MQB48 Key 14

Xhorse VVDI Key Tool Plus Adds VW MQB48 Key 15

Xhorse VVDI Key Tool Plus Adds VW MQB48 Key 16

Xhorse VVDI Key Tool Plus Adds VW MQB48 Key 17

Xhorse VVDI Key Tool Plus Adds VW MQB48 Key 18
