How to Add VW Passat 2015 Key with Xhorse Key Tool Plus?

Here is a Volkswagen Passat 2015 original key & a new key, need to program the new key with Xhorse VVDI Key Tool Plus Pad via OBD.

xhorse key tool plus vw passat 2015 add key 1

Connect VVDI Key Tool Plus with OBD, let’s start:

Read & Save Data (EEPROM, IMMO)

Immo programming >> Europe >> VW >> Automatically diagnose models >> Start programming >> OK >> Read EEPROM

Switch on with working key before press “OK”.

If car has keyless GO, put the working key nearby car coil and switch on.

Follow the notes to operate in next steps, press “OK”.

Note: the dashboard will remain dark until “Reset Instrument”.

OK >> OK >> Save here >> Rename, OK

Save file success.

Read immo data >> Continue >> OK >> OK >> Save here >> Rename, OK

Save file success.

xhorse key tool plus vw passat 2015 add key 2

xhorse key tool plus vw passat 2015 add key 3

xhorse key tool plus vw passat 2015 add key 4

xhorse key tool plus vw passat 2015 add key 5

xhorse key tool plus vw passat 2015 add key 6

Make Dealer Key & Key Learn

Generate dealer key – load immo data >> Select data file, open >> Continue >> Prepare normal dealer key >> Yes

Please place an unlocked 48 chip into the VVDI Key Tool Plus coil, press “OK”.

Key make okay and locked!

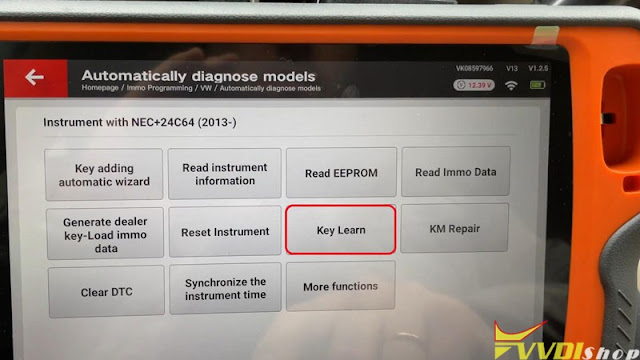

Key learn >> Yes >> Add the dealer key into immo system directly

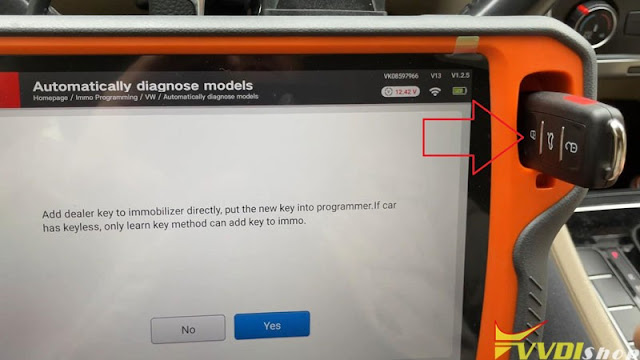

Put the new key into Key Tool Plus programmer. If car has keyless, only learn key method can add key to immo.

Press “Yes”.

Add key success. Reset instrument after all operation is finished.

Press “Reset Instrument”.

Reset success.

xhorse key tool plus vw passat 2015 add key 7

xhorse key tool plus vw passat 2015 add key 8

xhorse key tool plus vw passat 2015 add key 9

xhorse key tool plus vw passat 2015 add key 10

xhorse key tool plus vw passat 2015 add key 11

xhorse key tool plus vw passat 2015 add key 12

xhorse key tool plus vw passat 2015 add key 13

Program Remote

Go back to

Select by type >> Remote system >> 09 central control system (CAN) – BCM >> Start programming >> Program remote

Learn remote control. You need prepare all key that you want to learn remote control.

The key will not remote control car if it is not learned.

Press “OK”.

Input learning key numbers, press “OK”.

Remove the key from the ignition switch, press UNLOCK button for 1s, double flashing indicates that the remote has been recognized, operate the remote to be programmed in order according to above methods within 15s…

Remote control completed!

Note: some vehicles can only match one key at a time. If need to program multiple keys, please perform this function again.

xhorse key tool plus vw passat 2015 add key 14

xhorse key tool plus vw passat 2015 add key 15

xhorse key tool plus vw passat 2015 add key 16

xhorse key tool plus vw passat 2015 add key 17

Let’s test the key now, both can work well.

Adding key has done!

2015 VW Passat key programming via Xhorse Key Tool Plus is successful!
