Program Audi A4 2011 All Keys Lost with Xhorse Key Tool Plus

2011 Audi A4 5th immobilizer system all smart keys lost done with xhorse vvdi key tool plus today. It’s a good tool for me.

Preparation:

decode and open the door with Lishi auto pick

Main steps:

Step 1: Read BCM2 data

Step 2: Make dealer key

Step 3: Learn key

Procedure:

After connect keytool plus pad, go to Immo Programming->Audi ->Selec by type->Fifth Immobilizer system ->Read by OBDII->Read BCM2 Data (OBD)

Insert dealer key into the ignition, open headlight and step on the brake to wake up instrument before continue

Read vehicle information

Disconnect BCM module from power fOR 2-3 seconds and reconnect again.

Read data success

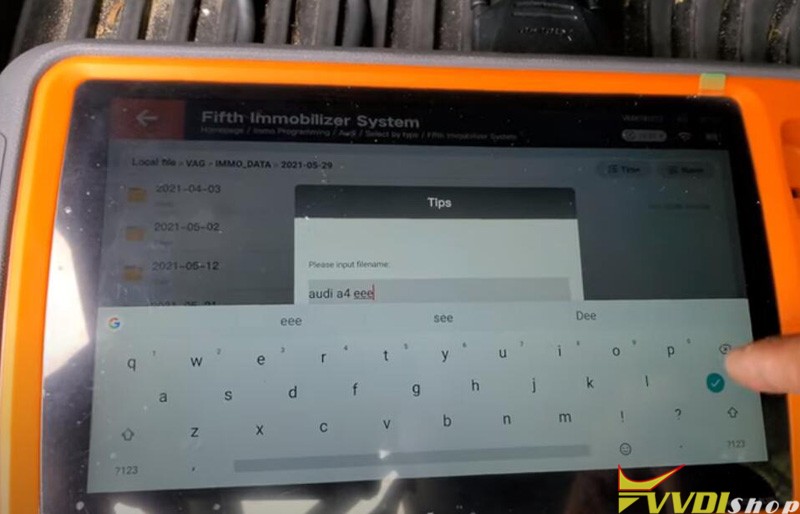

Save data
Go back to 5th Immo menu, select Make dealer key

Choose method: A4L, A5, Q5 add key or lost all key- Don’t need working key

Press Ok to load BCM2 data read in step 1
load file success

Put a key into the Xhorse key tool plus programmer
Reading and reprogramming key info
Writing data

Make dealer key success

In 5th Immo System menu, select Learn Key

select 1 key to be learn
Load BCM2 data read in step 1

Insert working key into ignition and witch on before continue
If lost all working insert dealer key into the ignition, open headlight and step on the brake to wake up instrument before continue

learn key success

The new key is working no issue.
