Program Honda Accord 2014 All Keys Lost by VVDI Key Tool Plus Pad

This is a quick demonstration of how to use Xhorse VVDI Key Tool Plus Pad to program a key for Honda Accord year 2014 up when all key lost.

Prepare

Connect VVDI Key Tool Plus Pad to OBD2 port of Honda, and a smart key to be programmed.

Procedure

Immo programming >> Asia >> Honda >> Accord

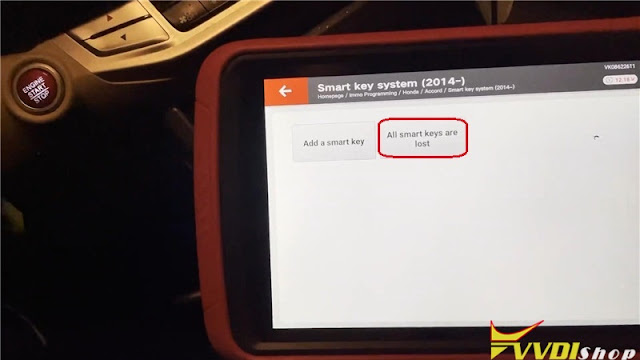

Smart key system(2014-) >> Begin >> All smart keys are lost

Put the smart key to be programmed inside the car, press “OK”.

Input the number of keys to be registering(up to six), press “OK”.

Can it operate normally to turn on ignition switch? Press “No”.

Follow the prompts to operate:

Press STAR/STOP button of engine.

Whether the ignition switch is turned on? Press “Yes”.

Turn off ignition switch.

Switch ignition on.

Whether indicator light is out? Press “Yes”.

Turn off ignition switch again.

Switch ignition on.

Smart keys registration completed! Press “OK”.

Program success, press “Yes” to complete.

Let’s test the smart key finally, okay, it can start the engine normally, all works well.

VVDI Key Tool Plus Pad key programming for Honda Accord 2013 all key lost successfully.
