VVDI Key Tool Plus Program Suzuki Swift 2012 Key

 How to use Xhorse VVDI Key Tool Plus to program a key for Maruti Suzuki Swift 2012 93C86 by EEPROM?



Procedure:

Step 1. Remove IC 93C86 from BCM by soldering.

vvdi-key-tool-plus-2012-suzuki-swift-1


Step 2: read eeprom data by connecting EEPROM adapter to Key Tool Plus

vvdi-key-tool-plus-2012-suzuki-swift-2

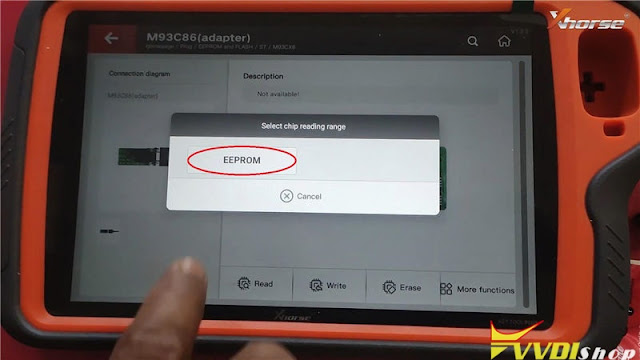

Prog >> EEPROM and Flash >> ST >> M93CX6 >> M93C86(adapter) >> Read >> EEPROM >> Begin

vvdi-key-tool-plus-2012-suzuki-swift-3

vvdi-key-tool-plus-2012-suzuki-swift-4

vvdi-key-tool-plus-2012-suzuki-swift-5

vvdi-key-tool-plus-2012-suzuki-swift-6

vvdi-key-tool-plus-2012-suzuki-swift-7

Make sure the adapter and chip connected, press “Continue” to start.

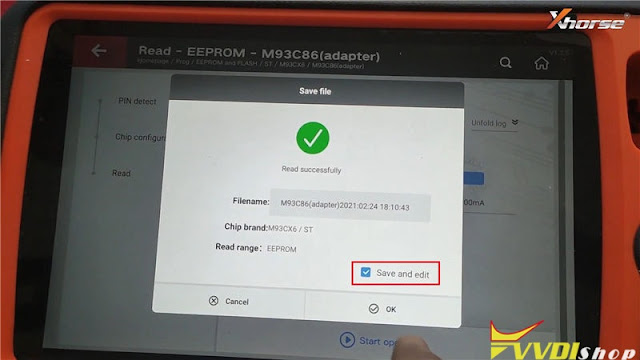

Read successfully,

Select “Save and edit”, press “OK”.



Press “Save as” to rename, press “OK” to save.



Save success.

vvdi-key-tool-plus-2012-suzuki-swift-8

vvdi-key-tool-plus-2012-suzuki-swift-9

vvdi-key-tool-plus-2012-suzuki-swift-10

Go back to main page,

Immo data tool >> Asia >> Suzuki >> Swift >> 2012 – 93C86 >> Begin

vvdi-key-tool-plus-2012-suzuki-swift-11

vvdi-key-tool-plus-2012-suzuki-swift-12

vvdi-key-tool-plus-2012-suzuki-swift-13



Select EEPROM data file saved just now, press “Open”.



Put a VVDI Super Chip into Key Tool Plus slot right side.

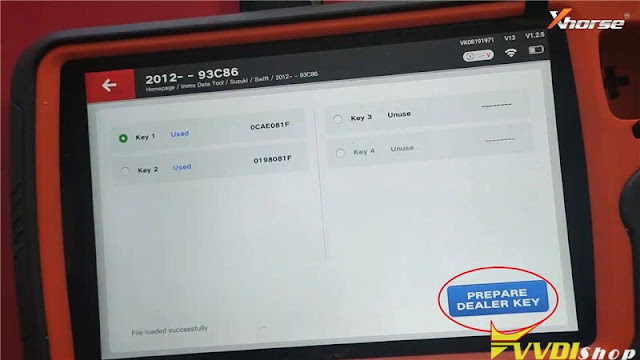

Select an used position: Key 1(no need write EEPROM),

Prepare dealer key >> OK



Prepare dealer key success.

Now the key can start engine. Press “OK”.

vvdi-key-tool-plus-2012-suzuki-swift-14

vvdi-key-tool-plus-2012-suzuki-swift-15

vvdi-key-tool-plus-2012-suzuki-swift-16

vvdi-key-tool-plus-2012-suzuki-swift-17

vvdi-key-tool-plus-2012-suzuki-swift-18

Suzuki Swift 2012 93C86 key programming via VVDI Key Tool Plus key programmer by EEPROM successfully!
