Xhorse Key Tool Plus Program Renault Kwid RXL Key

This is a quick demonstration of how to use Xhorse VVDI Key Tool Plus to program 2 keys for Renault Kwid RXL.

Connect Key Tool Plus with OBD, press

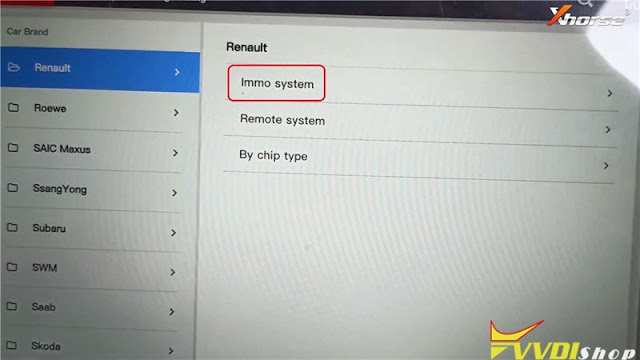

IMMO programming >> Renault >> Immo system >> India >> Kwid(RXL) >> Begin >> Program keys

xhorse-key-tool-plus-Renault Kwid RXL key 1

xhorse-key-tool-plus-Renault Kwid RXL key 2

xhorse-key-tool-plus-Renault Kwid RXL key 3

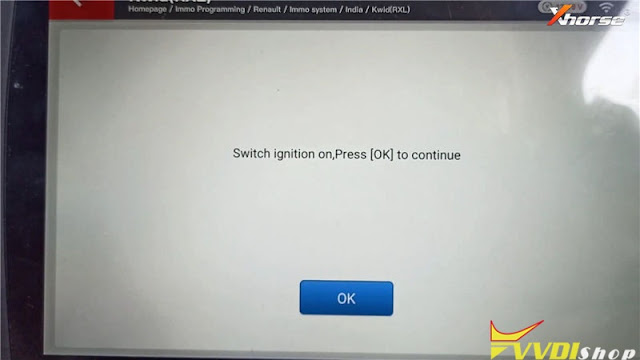

Switch ignition on, press “OK”.

Record VIN and out code, send them to the makers to query 39-digit incode.

Press “OK”.

Input 39-digit code, press “OK”.

xhorse-key-tool-plus-Renault Kwid RXL key 4

xhorse-key-tool-plus-Renault Kwid RXL key 5

xhorse-key-tool-plus-Renault Kwid RXL key 6

Switch ignition off and remove the key, press “OK”.

Insert the key and switch ignition on, press “OK”.

Program success, press “OK” to program next one.

Remove key from ignition, insert next key and switch ignition on, press “OK”.

Program success, press “Cancel” to go on next step.

xhorse-key-tool-plus-Renault Kwid RXL key 7

xhorse-key-tool-plus-Renault Kwid RXL key 8

xhorse-key-tool-plus-Renault Kwid RXL key 9

Switch ignition off wait for 5 seconds, and switch ignition on again.

Press “OK” to complete.

Here we go to test the keys, both can work fine.

Done!

xhorse-key-tool-plus-Renault Kwid RXL key 10

xhorse-key-tool-plus-Renault Kwid RXL key 11

Using Xhorse Key Tool Plus key programmer to add 2 keys for Renault Kwid RXL successfully.
